Foam floor mat KEW Plus Visco TarsaCare

dairy barncow comfort

Product description

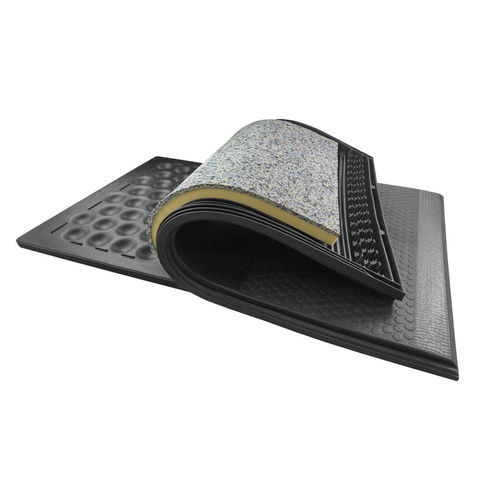

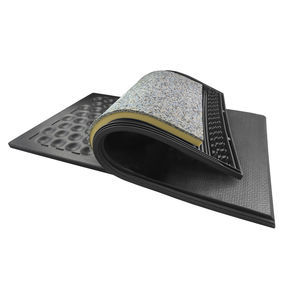

KEW Plus Visco TarsaCare expands the KEW Plus concept with an additional thick visco-elastic memory-foam comfort layer. The extra-soft top layer allows gentle, body-conforming sinking for dairy cows, providing even pressure relief, optimal positioning in any posture and a near weightless lying sensation. A proven base construction ensures stability and secure footing.

Comfort zone and function
The rear third of the mat features a specifically designed tarsal comfort zone with compliant spherical segments to cushion sensitive hock joints and promote a drier lying surface. The structure retains small amounts of bedding material, supports the layered system, improves ventilation around the skin and helps keep the coat dryer. Improved footing assists standing up, lying down and position changes.

System construction and installation
Mats are connected by profiles. Profiles are available in different widths to adjust the lying-area width. Optional accessories such as end profiles and side finishing profiles can be added for a tidy edge.

Main features

• Extra comfort through gentle sinking, anatomical conformity and even pressure distribution (memory foam)
• Specifically designed, extra-soft tarsal zone with compliant spherical segments
• Suitable for free-standing and mushroom-shaped brackets
• Available in XL lying length for more freedom when lying down, standing up and repositioning

Technical data
Model: KEW Plus Visco TarsaCare
Construction: four-layer with additional visco-elastic memory-foam layer
Thickness: approx. 10 cm
Widths (adjustable via profiles): 120 / 125 / 130 cm
Length: 192 cm
Side finishing profile: width 6.3 cm, length 183 cm
Optional accessories: ergoBOARD (elastic noseboard), maxiBOARD (robust noseboard)
Assembly: mats joined by profiles; prepared fixing points simplify installation
Tolerances: width + length ±1.5% (DIN ISO 3302–1, tolerance class M4)

Care tips

• Lightly bed the mats (e.g., fine straw dust or mineral bedding). Moisture in the lying area contributes to skin damage and infection risk.
• Can be cleaned with a pressure washer and common detergents.

KRAIBURG warranty
Rubber: 10 years, Foam: 5 years
