Foam floor mat KEW Plus Visco

dairy barncow comfort

Product overview

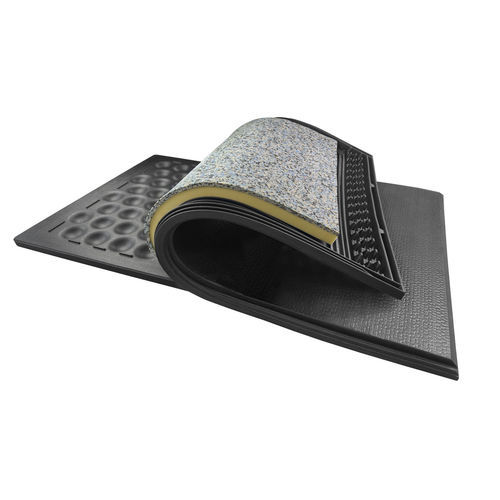

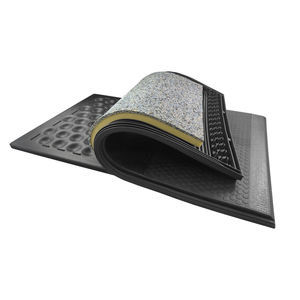

KEW Plus Visco extends the KEW Plus system with a thick visco‑elastic memory foam comfort layer. The extra soft top layer provides body‑conforming sinking and even pressure distribution to reduce pressure points and improve cow comfort across all lying positions. The proven KEW substructure ensures stable support and secure footing in cubicles.

Construction and variants
Individual mats are linked with connecting bars; bar widths are varied to control the usable lying width. Standard widths and lengths are available, with an XL lying length option for additional freedom when lying down and rising. Optional accessories include brisket boards and a side closure bar.

Key benefits

• Visco‑elastic memory foam (approx. 10 cm) offers gentle contouring and even pressure relief for dairy cows
• Compatible with suspended dividers and mushroom dividers used in modern cubicles
• XL lying length variant available for improved freedom of movement when lying, getting down and standing up

Technical data (summary)
Dimensions (mm / cm) — KEW Plus Visco — Thickness: approx. 10 cm — Width (controlled by connecting bar): 115 / 120 / 125 / 130 cm — Length: 183 cm
Additional size row — Width: 120 / 125 / 130 cm — Length: 192 cm

Dimensions (in / ft) — KEW Plus Visco — Thickness: approx. 4" — Width: 45 ¼ / 47 ¼ / 49 ¼ / 51 ¼" — Length: 72"
Additional size row — Width: 47 ¼ / 49 ¼ / 51 ¼" — Length: 75 ⅝"

Optional accessories: end bar
Side closure bar — Width: 6.3 cm / 2 ½" — Length: 183 cm / 72"

Optional accessories: brisket boards

• Elastic brisket board ergoBOARD
• Robust brisket board maxiBOARD

Installation and fixing
Mats are joined using connecting bars; prefabricated fixing points simplify attachment at the head edge and to the bars. Bar width selection allows precise control of the lying place width.

Maintenance tips

• Cover mats lightly with bedding (e.g. soft milled straw or mineral bedding). Excess moisture in the lying area increases risk of skin disease and infections.
• Cleaning with a high‑pressure cleaner and standard detergents is possible; follow farm hygiene protocols.

Warranty and tolerances
KRAIBURG warranty: Rubber 10 years, Foam 5 years. Width & length tolerances: +/- 1.5 % (DIN ISO 3302‑1 tolerance class M4).

Technical specifications

• Model: KEW Plus Visco
• Brand: KRAIBURG Elastik
• Comfort layer: thick visco‑elastic memory foam (approx. 10 cm)
• Substructure: proven KEW Plus substructure for stability
• Widths available (standard): 115 / 120 / 125 / 130 cm; additional widths: 120 / 125 / 130 cm
• Lengths available: 183 cm and 192 cm (variants/XL options)
• Thickness: approx. 10 cm (approx. 4")
• Optional side closure bar: 6.3 cm width, 183 cm length
• Optional brisket boards: ergoBOARD (elastic), maxiBOARD (robust)
• Suitable for suspended dividers and mushroom dividers
• Available in XL lying length for increased freedom
• Installation: mats joined with connecting bars; prefabricated fixing points for head edge and bars
• Maintenance: cover lightly with bedding; high‑pressure cleaning with standard agents possible
• Warranty: Rubber 10 years, Foam 5 years
• Tolerances: Width & length +/- 1.5 % (DIN ISO 3302‑1 class M4)
