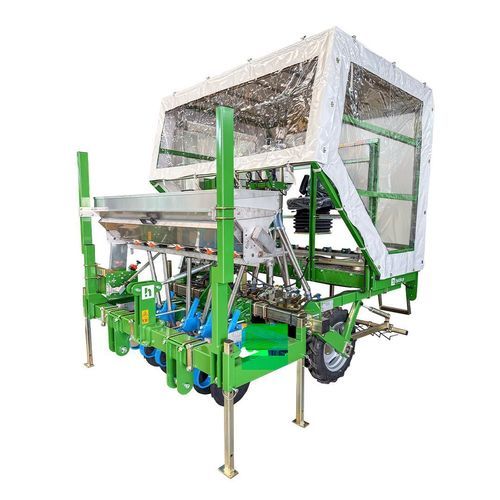

Mechanical plot seeder SB-25

1-10 row10-20 row

Product overview
The HALDRUP SB-25 band-type (belt cone) seeder was developed for agricultural research trials requiring uniform and reproducible seed placement. It features a clear mechanical design, intuitive operation and excellent seed visibility during seeding, enabling controlled and comparable results across trials.

Highlights

• Engineered for field trials and research with precise seeding requirements
• Clear, mechanically simple design for reliable operation
• Excellent seed visibility during placement for process control
• Uniform and reproducible seed placement for comparative experiments

Technical specifications

• Attachment: 3-point hitch or tool carrier
• Number of rows: from 2 up to 20
• Row spacing: from 9 cm
• Track width: from 1250 mm
• Tyres: 5.00–15 or on request
• Belt cones: 190 mm / 290 mm diameter; 2 belt cones for two plots or additional fertilizer
• Continuous seeding capacity: approx. 20 kg
• Micro granulate: dosing in the row or between rows

Coulter system (options)

• Shoe coulter: Amazone
• Single disc coulter: HALDRUP IS-COULTER, Amazone RoTec
• Double disc coulter: Lemken, Horsch
