Plot seeder SD-50

Overview

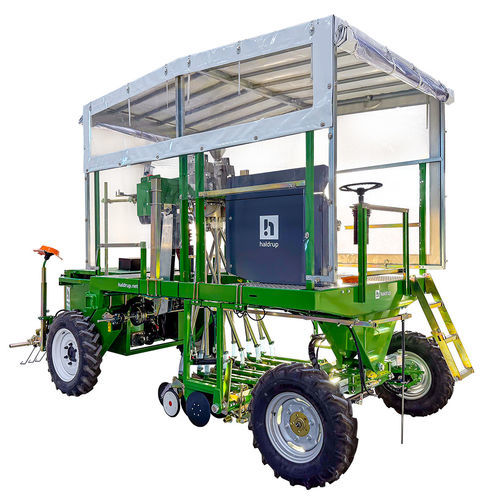

The self-propelled plot seed drill HALDRUP SD-50 is a modular machine designed for precise plot and trial sowing. Track width is variably adjustable to match local field conditions. All-wheel drive and large tyres ensure reliable operation under difficult sowing conditions and on varied soil types.

SD-50 Specifications

• Engine: DEUTZ Diesel Engine D2.9, water-cooled, 36 kW / 49 HP
• Fuel tank capacity: 60 l
• Speed: 0 – 18 km/h
• Brakes: hydraulic
• Tyres: Front 7.50 – 16; Rear 7.50 – 20 (other sizes on request)
• Dimensions (L x W x H): from 3.8 m x (depends on track width) x from 2.1 m
• Operating weight: from 1500 kg

Features & Components

• Variably adjustable track width to suit grower conditions
• All-wheel drive for improved traction and stability
• Large tyres for reliable operation in difficult sowing conditions
• Hydraulic braking system for controlled transport and field work

Compatible Seeder Parts

• HALDRUP SB-25
• HALDRUP SR-30
• HALDRUP SP-35

Applications

• Plot and trial sowing for breeding, research and variety testing
• Small-field sowing where adjustable track width and low ground pressure are required

Options & Support

• Other tyre sizes and custom track-width settings available on request
• Contact dealer for configuration, spare parts and service information
