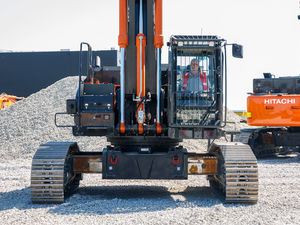

Hydraulic excavator ZX250-300-350-7

Overview

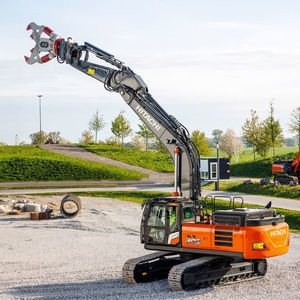

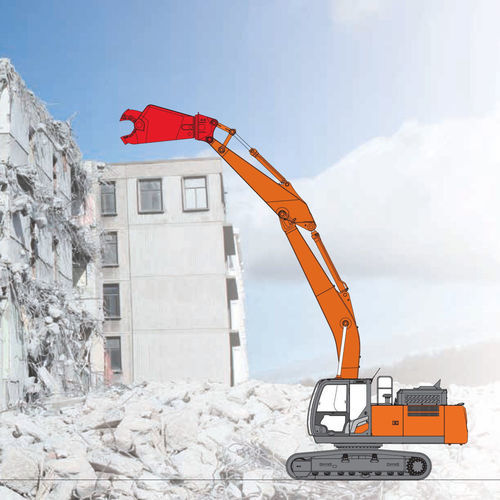

The straight mono front boom for ZX250/300/350-7 medium excavators provides increased working height compared with standard configurations. It is suited to infrastructure work and low-level demolition where elevated reach and controlled material handling are required.

Key features

• Engine Rated Power (kW): 140 / 197 / 210 kW (ISO14396)
• Operating Weight: 26 400 - 37 500 kg
• Max. Digging Depth: 6 670 / 5 870 / 6 295 / 6 560 / 6 830 mm
• Available in: Europe

Engine & hydraulic system
Engine Model: Isuzu 4HK1X (ZX250-7) / Isuzu AQ-6HK1X (ZX300/350-7)
Engine emissions: EU Stage V
Engine Type: 4-cycle water-cooled, common rail direct injection
Aspiration: Variable geometry turbocharger, intercooler, cooled EGR
Aftertreatment: DOC + CSF + SCR system
No. of cylinders: 4 (ZX250-7) / 6 (ZX300/350-7)
Main pumps: 3 variable displacement axial piston pumps
Pilot pump: 1 gear pump

Bucket and arm digging force
Bucket digging force ISO: 188 / 202 / 246 kN

Weights and ground pressure
Shoe grouser type: triple
Shoe width options (mm): 600 / 700 / 800 / 900

Working ranges
Arm length options (m): 2.96 / 2.42 / 2.76

Specifications

• Engine Model: Isuzu 4HK1X (ZX250-7) / Isuzu AQ-6HK1X (ZX300/350-7)
• Engine emissions: EU Stage V
• Engine Type: 4-cycle water-cooled, common rail direct injection
• Aspiration: Variable geometry turbocharger, intercooler, cooled EGR
• Aftertreatment: DOC + CSF + SCR system
• No. of cylinders: 4 (ZX250-7) / 6 (ZX300/350-7)
• Main pumps: 3 variable displacement axial piston pumps
• Pilot pump: 1 gear pump
• Bucket digging force ISO: 188 / 202 / 246 kN
• Shoe grouser type: triple
• Shoe width options (mm): 600 / 700 / 800 / 900
• Arm length options (m): 2.96 / 2.42 / 2.76
• Engine Rated Power (kW): 140 / 197 / 210 kW (ISO14396)
• Operating Weight range: 26 400 - 37 500 kg
• Max. Digging Depth options (mm): 6 670 / 5 870 / 6 295 / 6 560 / 6 830
