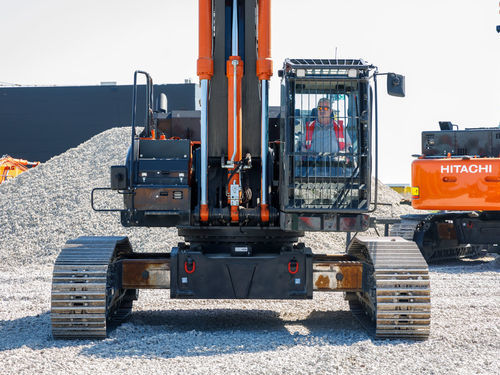

Tracked excavator ZX400MC-7

hydraulic

Overview
The ZX400MC-7 is engineered to maximise efficiency, uptime and safety on demolition sites. This multi-carrier demolition model is based on the ZX350LC-7 standard excavator, features Zaxis-7 technology and an EU Stage V-compliant engine. It is supplied with up to four front attachments including a monoboom, two-piece boom and high-reach demolition fronts (21 m or 24 m). The machine can perform tasks usually requiring several units, simplifying logistics and reducing transport and personnel costs. Boom Quick Connect and Tool Quick Connect enable fast boom and attachment changes from the operator's seat. A triple boom cylinder, extendable undercarriage for 360° working and a longer track frame enhance versatility and stability.

Key features

• Multi-carrier demolition configuration based on ZX350LC-7
• Zaxis-7 control and hydraulic technology
• EU Stage V-compliant engine
• Up to four front attachments: monoboom, two-piece boom, high-reach fronts (21 m or 24 m)
• Boom Quick Connect and Tool Quick Connect for rapid changeover from operator's seat
• Triple boom cylinder for extended reach and control
• Extendable undercarriage and longer track frame for 360° working and improved stability

Benefits

• Up to 10% reduced fuel consumption compared to previous models
• Improved hydraulic efficiency with TRIAS III system
• Enhanced cab comfort with integrated console, seat suspension, reduced noise and 20% lower vibration
• Higher site safety through superior visibility and 270° bird's-eye view from the cab

Attachments

• Durable hydraulic breakers, buckets and ground engaging tools designed for high productivity and easy maintenance
• Wide range of Hitachi buckets available with quick coupler options
• Hitachi-approved breakers engineered for long service life and simplified servicing
• Ground engaging tools (GET) precisely fit attachments and are quick and safe to install and replace

Engine & hydraulic system (data)
Engine Model: Isuzu 6HK1X
Engine emissions: EU Stage V
Engine Type: 4-cycle water-cooled, common-rail direct injection
Aspiration: Variable geometry turbocharger, intercooled, cooled EGR
Aftertreatment: DOC, CSF and SCR system
No. of cylinders: 6
Pilot pump: 1 gear pump

Technical specifications

• Engine Rated Power (kW): 210 kW (ISO14396)
• Operating Weight: 42 500 - 44 000 kg
• Shoe width: 600 mm
• Engine Model: Isuzu 6HK1X
• Engine emissions: EU Stage V
• Available in: Europe
