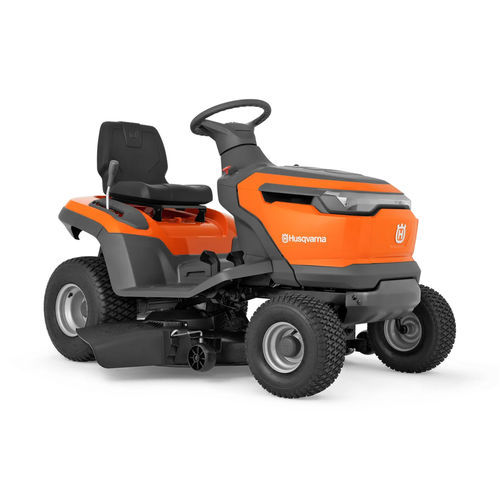

Riding lawn mower TS 100i

electricbattery-poweredself-propelled

Overview
Maintain larger lawns with the compact and easily operated Husqvarna TS 100i garden tractor. The compact design allows effortless navigation in narrow passages and facilitates storage when not in use. Even in the entry-level segment, the product offers a well-considered user experience with durable touchpoints and a modern appearance. Experience reliable electric power, excellent cutting results, and the dynamic mowing function that automatically adjusts power consumption based on mowing conditions to ensure consistent cutting performance and energy savings. Runtime can be extended using the savE™ mode, enabling quieter mowing.

Comfort & Operation
The TS 100i features ergonomic, easy-to-reach levers and controls for optimal convenience and a comfortable, spacious operator position. In transport mode the noise level is very low. The electric drive and reduced number of service points minimise maintenance. A towing hook enables use of tow-behind attachments for added versatility.

Key features

• Dynamic mowing: automatic adjustment of power consumption to maximise efficiency and performance without manual operation.
• 100% battery powered: fully electric, belt-free drive system designed to reduce maintenance.
• Ergonomic controls: comfortable driving position with easy-access controls and adjustable seat for user comfort.
• Low noise transportation: almost silent in transport mode for pleasant driving between mowing sessions.
• Power-Conserving savE™ Mode: maximises runtime by lowering rpm for tasks not requiring full power.
• Compact design: allows effortless navigation in narrow passages and easy storage.
• Electric cutting deck: electric motors individually control each blade for improved runtime and performance.
• Low maintenance: fewer service points thanks to electric, belt-free components.
• Charging status indicator: LED lights indicate charging status.
• Automatic parking brake: increases safety and reduces operator effort.
• Easy-access controls & electric engagement of cutting blades: intuitive panel switches and blade engagement via control switch.
• ROS in start key: reverse mowing (ROS) activated with start key to minimise accidental use.

More about Dynamic mowing and modes
Dynamic mowing mode provides maximum efficiency and performance without manual intervention. The savE™ mode lowers rpm to extend runtime and reduce noise when full power is not required.

Accessories & Support
A range of attachments and rear-mounted implements are available to extend the tractor's capabilities (e.g. trailers, scarifiers, rakes, loading ramps, mulching kit). Manuals, handbooks, spare parts and product support are available via the product support resources.

Technical specifications

• Article no: 970 74 51‑02
• Power / fuel type: Battery
• Cutting width: 95 cm
• Cutting height, max: 100 mm
• Cutting height, min: 25 mm
• Nose roller: No
• Anti-scalp wheels: 2
• Drive method: Dual pedal-operation
• Speed forward, max: 10 km/h
• Speed reverse, max: 6 km/h
• Transmission type: Electric
• Seat material: PU
• Seat type: Standard
• Front-end protection: Available as accessory
• Collector: No
• Sound power level, guaranteed (LWA): 100 dB(A)
• Sound pressure level at operator's ear (LpA): 83 dB(A)
• Base machine height: 110 cm
• Base machine length: 166.5 cm
• Base machine width (chute up): 112.7 cm
• Base machine width (chute down): 121 cm
• Tyre dimensions, front: 15x6-6
• Tyre dimensions, rear: 18x8.5-8
