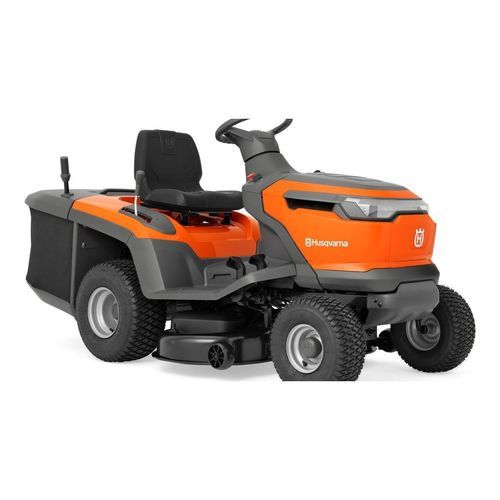

Riding lawn mower TC 100i

electricbattery-poweredcollecting

Overview
The Husqvarna TC 100i is a compact, battery-powered garden tractor with an efficient collecting system for maintaining larger lawns. Its compact footprint facilitates navigation in narrow passages and simplifies storage. The electric drive and reduced number of service points lower maintenance requirements while offering consistent cutting performance through a dynamic mowing function that adapts power to working conditions. savE™ mode extends runtime and reduces noise where full power is not required.

Key benefits & features

• Dynamic mowing mode automatically adjusts power and efficiency
• 100 % battery powered — fully electric drive system (belt-free) for reduced maintenance
• Ergonomic, easy-access controls and comfortable operator position
• savE™ mode to maximise runtime (power-conserving mode for quieter operation)
• Low noise during transport mode
• Compact design for navigation in narrow passages and easier storage
• Electric cutting deck with independent blade motors for improved runtime and performance
• Charging status indicator (LED) for battery/charging information
• Automatic parking brake for increased safety
• ROS (reverse operation system) activated with the start key to reduce unintended use
• Easy electrical engagement of cutting blades from control panel
• Included collector (efficient collecting system)

Additional product highlights (feature descriptions)

• Dynamic mowing: delivers efficient power distribution and performance without manual adjustments
• 100 % battery powered: fully electric, belt-free drive reduces routine maintenance points
• Ergonomic controls: adjustable seat and intuitive controls ensure operator comfort during extended use
• Low noise transportation: very low noise in transport mode for comfortable transit between sites
• Power-Conserving savE™ Mode: lowers rpm to extend runtime for less demanding tasks
• Compact design: easy manoeuvrability in tight passages and simplified storage when not in use
• Electric cutting deck: independent electric motors control each blade for optimized runtime and cutting performance
• Low maintenance: fewer service points and electric drivetrain reduce upkeep
• Charging status indicator: LED display shows battery and charging state

Specifications (table)
Power / fuel type: Battery
Cutting width: 95 cm
Cutting height, max: 100 mm
Cutting height, min: 25 mm
Nose roller: No
Anti-scalp wheels: 2
Drive method: Dual pedal-operation
Speed forward, max: 10 km/h
Speed reverse, max: 6 km/h
Transmission type: Electric
Sound power level, guaranteed (LWA): 100 dB(A)
Sound pressure level at operator's ear (LpA): 87 dB(A)
Base machine, height: 110 cm
Base machine, length: 166.5 cm
Tyre dimensions, front: 15x6-6
Tyre dimensions, rear: 18x8.5-8
Seat material: PU
Seat type: Standard
Front-end protection: Available as accessory
Hour meter type: None
Seat back height: Medium
Steering wheel type: Ergonomic
Collector: Included

Technical specifications

• Model family / product name: TC 100i
• Power / fuel type: Battery (fully electric)
• Cutting width: 95 cm
• Cutting height range: 25–100 mm
• Cutting deck: Electric cutting deck (electrical engagement of blades)
• Drive method: Dual pedal-operation
• Transmission: Electric
• Max forward speed: 10 km/h
• Max reverse speed: 6 km/h
• Anti-scalp wheels: 2
• Nose roller: No
• Sound power level (LWA): 100 dB(A)
• Sound pressure level at operator ear (LpA): 87 dB(A)
• Base machine dimensions (H x L): 110 cm x 166.5 cm
• Tyre dimensions (front / rear): 15x6-6 / 18x8.5-8
• Seat: PU, standard, medium back height
• Collector: Included
• Key functions: Dynamic mowing, savE™ mode, charging status indicator, automatic parking brake, ROS in start key
