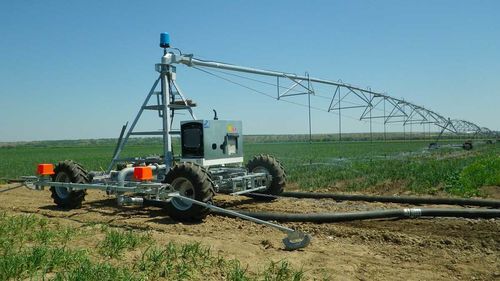

4-wheel lateral move RM4 series

Overview
Lateral-move irrigation ramps offered in RM4T (swivel) and RM4TD (swivel and towable) variants. Equipment includes motor reducers, axles, wheels, hydraulic supply, wheel orientation control and control cabinet.

RM4T

• Swivel model.
• 2 half axles with 4 UMC motor reducers + 4 fixed reducers.
• 4 wheels 14,9 x 13 x 24.
• 1 swivel head.
• 1 hydraulic feed with adjustable elbow (no action required at reversal).
• Variable camber.
• Wheel orientation by remote control.
• 1 control cabinet.

RM4TD

• Swivel and towable model.
• 2 half axles with 4 UMC motor reducers + 4 fixed reducers.
• 4 wheels 14,9 x 13 x 24.
• 1 swivel head.
• 1 hydraulic feed with adjustable elbow (no action required at reversal).
• Variable camber.
• Wheel orientation by remote control.
• 1 traction drawbar for the prime mover.
• 1 control cabinet.

RM2-4PL (other variants described)

• 1 axle with 2 UMC motor reducers + 4 UMC reducers.
• 4 wheels 14,9 x 13 x 24 mounted on an articulated system to increase ground contact.
• 1 combined unit (alternator + diesel engine + pump) for electrical and hydraulic supply.
• 1 diesel fuel tank with configurable capacity.
• 1 articulated pumping arm to feed spans by suction from channels.
• Pumping arm lifting by manual winch to ease handling and cleaning of strainers.
• Automatic adjustment of strainer height to adapt to water-level variations.
• 1 electric priming pump for filling lines before pump start.
• Manual pump declutching for ramp operation without water.
• Dual hydraulic supply to spans enabling setup on either side of the prime mover.
• End-of-field stop and automatic reversal system.
• 1 control cabinet.

Technical characteristics / specifications

• Types: swivel (RM4T), swivel and towable (RM4TD).
• Axles: half axles (RM4T/RM4TD) or 1 axle (RM2-4PL depending on variant).
• Motorization: UMC motor reducers (number and type depending on model), fixed or declutchable reducers.
• Wheels: 4 wheels 14,9 x 13 x 24.
• Swivel head included.
• Hydraulic supply with adjustable elbow (no action required at reversal).
• Variable camber.
• Wheel orientation by remote control.
• Control cabinets included.
• RM4TD: traction drawbar for prime mover.
• RM2-4PL: options for combined unit (alternator + diesel engine + pump), diesel tank, articulated pumping arm, electric priming pump, manual pump declutching, dual hydraulic supply, automatic strainer-height adjustment, end-of-field stop and automatic reversal.
