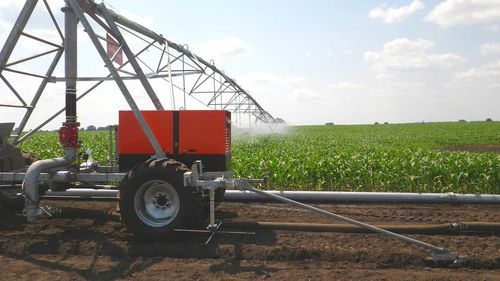

4-wheel lateral move RM2-4 series

Add to favorites

Compare this product

Characteristics

RM2-4L

Single axle with 2 UMC geared motors and 4 UMC reducers
4 wheels 14.9 x 13 x 24 mounted on an articulated system to improve ground adherence
Wide axle option to accommodate a generator and a diesel or fertiliser tank
Double hydraulic row supply enabling installation of spans on either side of the drive unit
Hydraulic supply with orientable elbow to avoid intervention at reversal
End-of-plot stop and automatic reversal system
Control cabinet included

RM2-4PL

Single axle with 2 UMC geared motors and 4 UMC reducers
4 wheels 14.9 x 13 x 24 mounted on an articulated system to improve ground adherence
Mixed power group (alternator + diesel engine + pump) for electrical and hydraulic supply
Diesel supply tank with configurable capacity
Articulated pumping arm for water supply by suction from channels
Manual winch for pumping arm lift to ease handling and cleaning of strainers
Automatic strainer height adjustment to adapt to water level variations
Electric priming pump to fill lines before the main pump starts
Manual pump clutch for lateral move operation without water
Double hydraulic row supply enabling installation of spans on either side of the drive unit
End-of-plot stop and automatic reversal system
Control cabinet included

Characteristics / technical specifications

Axle: single-axle configuration for RM2-4L and RM2-4PL
Drive: 2 UMC geared motors plus 4 UMC reducers
Wheels: 4 wheels 14.9 x 13 x 24 on an articulated mounting for improved ground adherence
Wide axle: option to install generator and diesel or fertiliser tank (RM2-4L)
Hydraulics: double hydraulic row supply for fitting spans on both sides of the drive unit (both models)
Hydraulic elbow: orientable elbow on RM2-4L to avoid intervention at reversal
Mixed power group (RM2-4PL): alternator + diesel engine + pump for electrical and hydraulic supply
Diesel tank (RM2-4PL): configurable capacity
Pumping arm (RM2-4PL): articulated arm for water aspiration from channels
Pumping arm handling (RM2-4PL): manual winch lift for strainer handling and cleaning
Strainer control (RM2-4PL): automatic height adjustment for varying water levels
Priming (RM2-4PL): electric priming pump to fill conduits before pump start
Clutch (RM2-4PL): manual pump clutch for dry lateral-move operation
Safety and control: end-of-plot stop and automatic reversal system; integrated control cabinet (both models)
