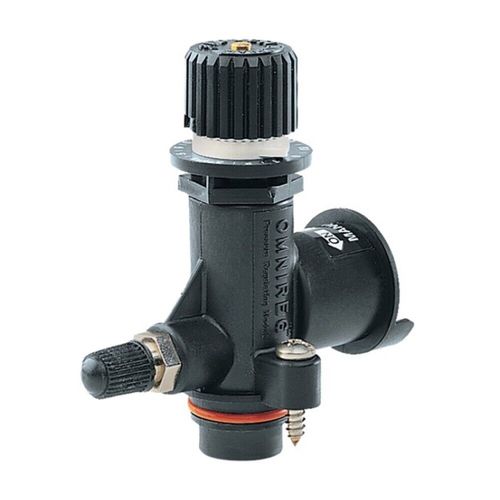

Irrigation solenoid valve Omnireg

regulating

.Pressure Regulator .It is suitable for all Irritrol valves: Century Plus, 700 series (Ultra Flow), Euro F PR 1", Euro F 11/2" 200-B and S-Series .No need for a gauge because the central selector indicates the outlet pressure both in psi and bars .Easy vertical installation in the solenoid cavity, using the two screws provided. The solenoid is fitted in the side cavity provided in the OmniReg. .Its upright position facilitates assembly, offering a great saving in space and makes it extremely easy to adjust .The desired pressure can be adjusted when the system is shutdown or in operation .Accuracy of ±0,2 bar .Eliminates the need to keep double valve stocks .Needs only 3,8 l/min to operate .Maintains a constant pressure downstream. Specifications .Body in Nylon reinforced with fiberglass, metal components made of steel and brass .Outlet pressure regulated from 0,35 to 2,1 bar (mod. OMR-30) and from 0,35 to 6,9 bar (mod. OMR-100) .Inlet pressure up to 13,8 bar .Inlet pressure has to be at least 0,7 bar higher than the desired outlet pressure .To reduce water hammering, the flow rate must not exceed 2,3 m/sec. .Flow rate from 3,8 to 1136 l/min. .Schrader coupling to enable pressure controls (if desired) .Downstream sensing kit available for a higher precision in low pressure conditions. Applications Commercial irrigation
