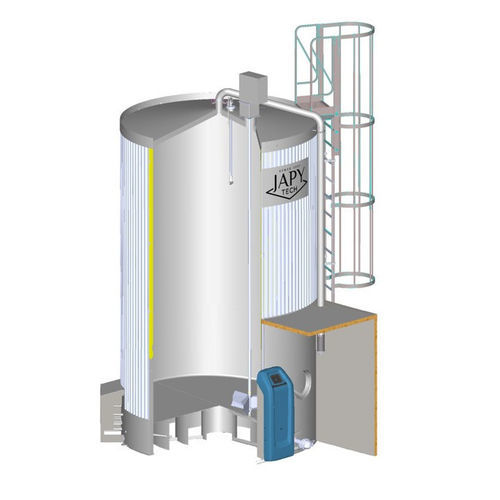

Grain silo

aluminum

The solution for large storage! - 2 possible diameters: - ø 3,000 for maximum storage up to 40,000L - ø 2,250 suitable for standard road transport and shipping by container Maximum weight: 3.5 T Maximum height: 7.5 m – 8 m Silo Capacities: - ø 2,250: 8,000 L, 10,000 L, 12,000 L, 16,000 L, 18,000 L, 20,000 L, 24,000 L - ø 3,000: 15,000 L, 18,000 L, 20,000 L, 25,000 L, 30,000 L, 35,000 L, 40,000 L Key Features: - Two independent washing circuits for high hygiene levels - 304 stainless steel tank and outer shell - Safety features include a self-retracting life line and anchor points - Large-diameter vent (ø 114) for rapid collection - Alcove for building connection - Large manhole: 510 x 410 mm - Drain with 3 connection standards - ICool control and washing station - Patented agitation system - High-density polyurethane insulation (70mm, CFC-free) - 4 high-efficiency STIL evaporators Technical Specifications: - Diameters: ø 2,250 mm and ø 3,000 mm - Capacities: 8,000 L to 40,000 L - Maximum weight: 3.5 T - Maximum height: 7.5 m – 8 m - Optional aluminum outer shell in various colors
