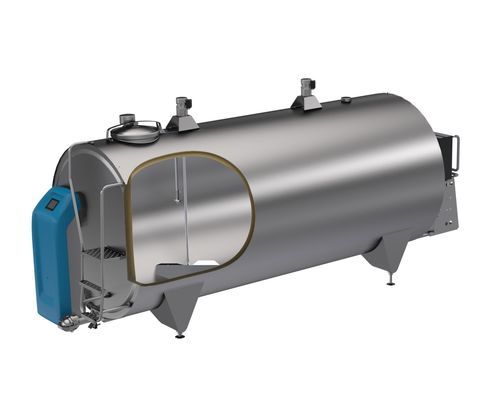

Milk tank TCool

stainless steelwith cooling systemstorage

Overview
Best seller of the JAPY range of milk tanks, the TCool answers dairy farmers’ needs across herd sizes. Available in S, M, XL and XXL sizes with capacities from 1,010 L up to 33,500 L. Example maximums: weight up to 3.5 T, length up to 11 m depending on configuration.

Key features

• Large, non-fixed work platform for easy on-farm cleaning and access.
• Unique waterproof manhole lid without seal, vertical swivel side opening; manhole fitted with a vent.
• Continuous gentle agitator to ensure milk homogeneity while preserving product integrity.
• Milk inlet and secondary vent position available.
• Inner vessel and outer shell in 304 stainless steel for food-grade contact.
• Compact version with integrated cooling unit for fast installation; separate version allows refrigeration group installation in a ventilated area for optimized energy performance.
• Robust support frame enabling accurate calibration, LNE certified; adjustable feet for dairy floor installation.
• High-density polyurethane insulation, CFC-free, to maintain temperature and reduce energy use.
• High-efficiency STI (integrated tubular system) evaporator concept; BII-class evaporators tested for rapid cooling (example: 35°C to 4°C in under 3 hours at 32°C ambient).
• Two independent washing circuits (AED patented system) with pre-wash to remove sediments.
• Multiple diameters and connection standards (DIN, SMS, RJT, DS, ISS, ...), single or self-cleaning options; drain fitted with safety valve to prevent accidental filling with wash water during milking.
• Compatible with ICool control and washing terminal for automated operation.

Capacities (by tank diameter)
TCool | ø 1,260 | ø 1,510 | ø 1,780 | ø 2,250 | ø 3,000
Capacity | 1,010 L; 1,500 L; 2,110 L | 2,500 L; 3,100 L; 3,600 L; 4,200 L; 5,200 L; 6,200 L | 5,000 L; 6,000 L; 7,000 L; 8,000 L; 9,000 L; 10,000 L | 10,000 L; 12,000 L; 15,000 L; 19,000 L; 25,000 L; 30,000 L | 25,000 L; 30,000 L; 33,500 L

Brochure and documents
Product brochure and technical documents available on request (language-specific versions available via dealer or JAPY representative).

Technical characteristics / specifications

• Product family / model name: TCool (JAPY).
• Capacity range: from 1,010 L up to 33,500 L depending on diameter and configuration.
• Available diameters: ø 1,260; ø 1,510; ø 1,780; ø 2,250; ø 3,000.
• Inner and outer material: 304 stainless steel (food-grade).
• Insulation: high-density polyurethane, CFC-free.
• Evaporator: STI integrated tubular system, BII-class high-efficiency evaporators.
• Agitator: continuous gentle stirring for milk quality preservation.
• Washing: two independent circuits; AED patented wash system with pre-wash.
• Connections: multiple standards (DIN, SMS, RJT, DS, ISS, ...), single or self-cleaning options.
• Safety: drain with safety valve to prevent accidental filling during milking.
• Installation variants: compact (integrated cooling unit) or separate refrigeration group installation.
• Maximum weight (example configuration): up to 3.5 T; maximum length up to 11 m (depending on model).
• Support and calibration: robust frame, LNE certified; adjustable feet for farm installation.
