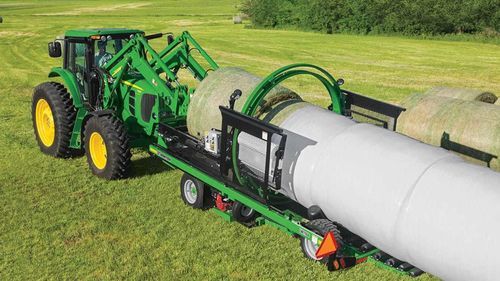

In-line bale wrapper LW11 Series
roundautomatictowed

In-line bale wrapper - LW11 Series - John Deere Forestry - round / automatic / towed
In-line bale wrapper - LW11 Series - John Deere Forestry - round / automatic / towed
Add to favorites
Compare this product

Characteristics

Type
in-line
Bale type
round
Other characteristic
automatic, towed

Description

Overview
  • LW11 Series in-line bale wrapper with integrated bale push and centralized hydraulic control. Designed for continuous wrapping of round bales with automatic film detection and shutdown.
  • Wrapping capacity up to 120 bales per hour; standard traction tires for improved mobility on wet or uneven terrain.


Key features
  • Adjustable folding tongue (hitch) simplifies repositioning and transport.
  • Integrated bale push feeds bales to the rear of the wrapper; optional bale push-off arm available for automated unloading.
  • Central control box and levers manage electric-over-hydraulic functions: start/stop, bale ramp and bale push control.
  • Film wrap sensor stops the wrapping cycle automatically when film runs out or breaks, reducing waste and downtime.
  • Traction implement tires (standard) enhance grip in field conditions; optional power-drive configurations improve maneuverability without a tractor.


Options and productivity/uptime accessories
  • 14.9 kW (20 hp) Honda engine (optional). Note: LW Series standard engine is 9.7 kW (13 hp) Honda.
  • Single- or dual-power hydraulic drive (optional) — permits unit maneuvering without a tractor; dual drive increases traction.
  • Remote steering control — enables steering, start and stop from a remote location for safer operation.
  • Twin wrap kit — applies a double layer of film for increased protection of bales.
  • Bale follower — automatically tracks and follows adjacent bale lines to maintain alignment.
  • Work lights — optional LED or halogen lighting for early-morning or late-night operations.
  • Additional kits: night lighting kit, remote steering and shutdown conversion kits; wheel conversion kits for single- or dual-wheel hydraulic power-drive conversions.


Technical specifications
  • Model / Commercial designation: LW11 Series
  • Category: In-Line Bale Wrapper
  • Wrapping capacity: 120 bales per hour
  • Film tensioners: Two aluminum rollers: 76.2 cm
    30 in.
    with stretch: 55 percent
  • Bale size (round bale diameter): 1.7 m
    5.5 ft
  • Overall machine height: 2.7 m
    9 ft
  • Overall machine width: 2.7 m
    9 ft
  • Overall machine shipping length: 5 m
    16.4 ft
  • Overall machine length: 5.5 m
    18 ft
  • Weight (machine): 2,268 kg
    5,000 lb
  • Towing unit minimum weight: 1,511.8 kg
    3,333 lb
  • Tires (quantity): Four (two front, two rear)
  • Front tire size: 11L-15 Implement
  • Rear tire size: 27x10.5 Traction
  • Engine type: Honda
  • Engine size (standard): 9.7 kW
    13 hp
  • Alternator size: 18 amp
  • Start type: Electric
  • Controls: Electric over hydraulic 12 V
  • Hydraulic system: Self-contained
  • Steering: Hydraulic with optional remote control
  • Power drive: Optional, hydraulic single or dual wheel
  • Lift mechanism: Hydraulic rear axle rotation
  • Hoop speed: Adjustable flow control valve
  • Cycle time: Adjustable with limit switches
  • Bale alignment: Fixed bale guides
  • Bale guide rollers: Two standard
  • Final bale pusher: Self-contained scissor linkage
  • Unloading: Manual cross tube
  • Hitch type: Folding; length adjustable
  • Transport safety lights: Standard
  • Markings: SMV and reflectors
  • Safety tow chain: Standard
  • Jack: Standard
  • Set-up time (labor hours): 1
  • Warranty (machine): 1 year
