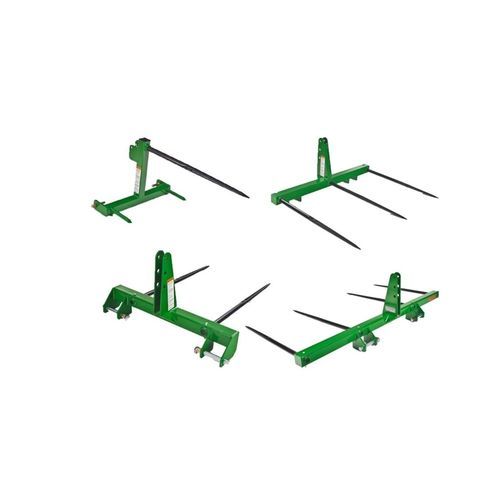

Bale spear HS20 Series

2-tine3-tine1-tine

Overview

• Forged-steel bale spear tines
• Hitch provides quick connection
• Sturdy tubular frame

Forged-steel bale spear tines
Bale spear tines are made of forged steel to resist bending and extend service life. Tines are bolt-on for straightforward replacement if a tine is damaged.

Hitch and compatibility
The single-spear HS2001 model uses the iMatch hitch system and is quick-hitch compatible with Category 1 and 2 hitches. The dual-spear HS2002 model is quick-hitch compatible with Category 2 and 3 hitches and also connects to Category 3N hitches. Hitch pins are included.

Tubular frame and capacity
The tubular frame on the HS20 Series 3-Point Bale Spears supports round bales up to 1.5 m x 1.8 m (5 ft x 6 ft). Single-tine spears have a rated capacity of 997.9 kg (2200 lb); dual-tine spears are rated to 1360.8 kg (3000 lb).

Additional details

• Bolt-on spear tine is easy to replace if damaged
• Quick and straightforward hitch system
• Hitch pins included

Specifications

• Model: HS20 Series
• Commercial designation: 3-Point Hitch Bale Spears
• Product base code: 2280XF
• Product SKU: hs20_xf
• Maximum bale size supported: 1.5 m x 1.8 m (5 ft x 6 ft)
• Capacity (single-tine): 997.9 kg (2200 lb)
• Capacity (dual-tine): 1360.8 kg (3000 lb)
• Tines: forged-steel, bolt-on replaceable
• Hitch compatibility: HS2001 (single-spear) – iMatch & quick-hitch compatible with Category 1 and 2; HS2002 (dual-spear) – quick-hitch compatible with Category 2 and 3 and connects to Category 3N
• Frame: tubular frame
