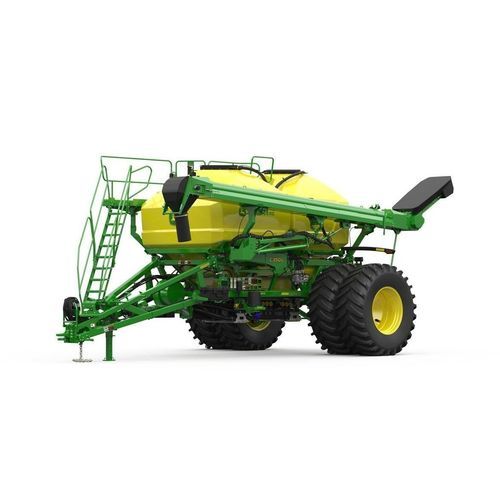

Towed air cart C350L
Add to favorites
Compare this product
Characteristics
- Mounting
- towed
- Capacity
350 l
(92 gal)
Description
Product overview
Key features
Model capacity
Technical specifications
Operation & maintenance
Compatibility & options
- 350-bushel (12,333.68 L) leading air cart designed for large-scale precision seeding and product delivery
- Individual stainless-steel electric meters and electric 56 V meter drive for per-row metering control
- Dual-tank configuration with configurable tank splits and single or dual blower options
Key features
- AccuRate™ metering system
- Stainless steel meter housing for corrosion resistance
- Individual electric meters per primary enabling start/stop control and high-fidelity prescriptions (up to 8× more precise vs previous systems)
- Curve compensation for accurate meter output on turns
- EZCal™ system
- Automated calibration using integrated load cell to measure initial and final hopper weights
- Reduces calibration time and user error by calculating and transferring Meter Displacement Value (MDV)
- ActiveCal™ display
- Cab-controlled calibration using tank scales for fast verification of seeding rates
- SectionCommand™ Pro
- Individual section start/stop to minimize skips, overlaps and product waste; equalizer feature compensates for hose length and delivery timing
- TruSet™ downforce control
- Adjust downforce from the cab and store presets for consistent row emergence across fields
- RelativeFlow™ monitoring
- Row-by-row blockage detection and reporting to the cab
- Blower speed automation
- Maintain preset blower speeds across up to six product application rates to avoid blockages and seed loss
- Guidance and connectivity
- AutoTrac™ Implement Guidance and AutoTrac Turn Automation for precise implement placement and automated headland turns
- Integration with John Deere Operation Center and Operation Center Mobile for remote monitoring and data management
- Connected Support including Expert Alerts and remote display access for proactive assistance
Model capacity
- C350L / C350T — 350 bu | Tank splits: 160 bu / 190 bu
- C400L / C400T — 400 bu | Tank splits: 50 bu / 160 bu / 190 bu
- C500L / C500T — 500 bu | Tank splits: 190 bu / 90 bu / 220 bu
- C550L / C550T — 550 bu | Tank splits: 50 bu / 190 bu / 90 bu / 220 bu
- C650L / C650T — 650 bu | Tank splits: 50 bu / 260 bu / 130 bu / 210 bu
- C850T — 850 bu | Tank splits: 50 bu / 260 bu / 130 bu / 410 bu
Technical specifications
- Total cart capacity: 12,333.68 L (350 bu)
- Number of tanks: Two; tank splits example: 5,638.25 L (160 bu) and 6,695.42 L (190 bu)
- Number of meters: 6 or 8 per tank (individual electric control)
- Meter drive: Electric 56 V; meter housing: stainless steel
- Blower options: single or dual; air system drive hydraulic per blower up to 98.4 L/min (26 gpm)
- Product delivery hoses: 6.35 cm (2.5 in)
- Conveyor belt width: 40.6 cm (16 in); conveyor tube / auger diameter: 25.4 cm (10 in)
- Conveyor capacity (wheat): 2,325.8 L/min (66 bu/min); auger capacity (wheat): 1,726.7 L/min (49 bu/min)
- Transport height: 4.0 m (13 ft 2 in); field height: 4.2 m (13 ft 9 in)
- Length overall: 9.47 m (31 ft 1 in); hitch pin to axle: 6.76 m (22 ft 2 in)
- Widths: base tires 4.2 m (13 ft 9 in); high-flotation 5.34 m (17 ft 6 in); 3m tire option 3.75 m (12 ft 4 in)
- Ground clearance (empty): 68.8 cm (27 in)
- Shipping weight (base): 6,137 kg (13,530 lb); high flotation option: 7,397 kg (16,308 lb); row-crop option: 6,839 kg (15,077 lb)
- Tire options: base 710/70R-38 R1W singles; high flotation 650/85R38 173B R-1W FS duals; row-crop 18.4R-42 R1 153A8 duals
- Spec sheet date: 28-Feb-2024
Operation & maintenance
- Calibration workflows supported: EZCal™ automated cart calibration and ActiveCal™ cab calibration using tank scales
- G5e cart-side display with meter rollers stored for quick interchange
- Recommended checks: meter housings, blower filters, conveyor and auger clearances, scale calibration
Compatibility & options
- Compatible with section control and variable-rate systems; supports high-fidelity prescriptions
- Optional configurations: meter counts per tank (6 or 8), blower configuration (single/dual), multiple tire and flotation packages
