Overview

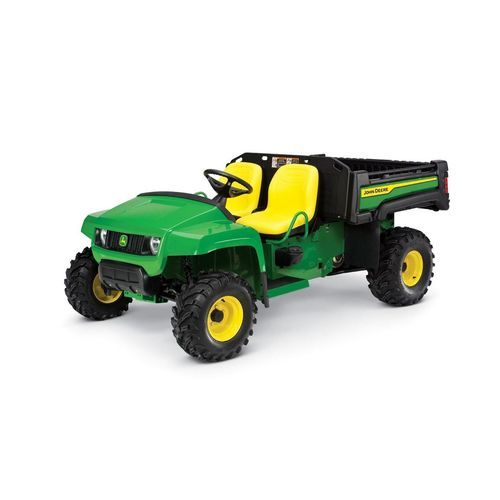

The John Deere TX 4x2 is a compact utility vehicle designed for hauling, towing and on-site transport for farms, estates and light worksites. It features a wide stance for improved stability and a durable cargo box configured for frequent loading and unloading.

Engine
The TX 4x2 is powered by a 11.6-kW (15.5-hp), 675-cc V-twin, four-cycle gasoline engine with overhead valves. The engine includes full-pressure lubrication with oil filter, a replaceable single-element air cleaner with remote intake and a large-capacity spark-arresting muffler. Fuel tank capacity: 18.9 L (5 U.S. gal.). Typical fuel consumption at half load: 1.3 L/hr (0.35 U.S. gph). EPA compliant.

Engine features

• Overhead valve design for efficiency and fuel economy
• Full-pressure lubrication system with standard oil filter
• Replaceable single-element air cleaner with remote intake
• Large-capacity spark-arresting muffler
• 18.9 L (5 U.S. gal.) fuel tank capacity

Drive system
Power is transmitted via a continuously variable clutch system to a fully enclosed oil-bath transaxle, which drives the rear axle. The drive uses two clutches connected by a belt; helical gears in the transaxle provide quiet operation. A mechanically activated traction assist (differential lock) is integrated into the transaxle for improved traction.

Variable-speed drive highlights

• Infinite selection of speeds: 0 km/h to 32 km/h (0 mph to 20 mph)
• No manual shifting required as speed increases
• Automatically adapts speed to load to reduce bogging

Drivetrain and axles

• Fully enclosed transaxle running in oil
• Mechanically activated traction assist (differential lock)
• Heavy-duty rear axle housings with forged splined one-piece axles
• Large sealed bearings and nodular cast-iron housings for durability

Operator conveniences
The cab area and controls are arranged for straightforward operation and service access.

• Side-by-side bucket seats for operator and one passenger
• Hip restraints used as handholds
• Seats tilt forward for dry storage and service access
• Choice of adjustable or non-adjustable driver’s seat
• Hour meter standard; integrated cupholders and 12-V outlet on instrument panel
• Park brake indicator light, center-mounted key switch, glove box, grab bar and additional storage between seats

Durable deluxe cargo box
The deluxe cargo box is constructed of 15% glass-filled polypropylene composite with floor and front panel in steel. The tailgate opens or is removable for clean-out and longer loads; it can be operated one-handed and lowered to 150 degrees. Gas-assist and prop rod hold the box upright. Integrated tie-down points are located at the four inner corners, four points on the load guard behind the operator, tie-down bars on the sides and six points under the box frame.

Cargo box specifications

• Length: 1,143 mm (45 in.)
• Width: 1,320 mm (52 in.)
• Depth: 304 mm (11 in.)
• Volume: 0.46 m³ (16.4 cu ft)
• Weight capacity (TX / TX Turf): 272 kg (600 lb)
• Dump angle: 43 degrees

Telematics / Fleet management
Optional modem connectivity (JDLink / JDLink M) enables connection to John Deere Operations Center for location, status, engine hours, maintenance planning, machine analyzer data, fuel level/consumption (on select products), diagnostic trouble codes and, on select models, remote dealer diagnostics via Service Advisor Remote. Compatibility and availability vary by model year and options.

Technical specifications

• Brand: John Deere
• Commercial model: TX 4x2
• Engine type: Four-cycle gasoline, V-twin
• Displacement: 675 cc (41.2 cu in.)
• Engine power: 11.6 kW / 15.5 hp
• Cooling: Air-cooled
• Transmission: Continuously Variable Transmission (CVT)
• Final drive: Fully enclosed, oil bath
• Traction assist: Mechanically activated differential lock
• Four-wheel drive: No
• Front suspension: Independent spring-over-shock, single A-arm
• Rear suspension: Semi-independent coil-over-shock (COS)
• Brakes: Hydraulic disc all-round; park brake: rear mechanical disc, hand operated
• Front tires: 22x9.5-10 4PR all-terrain on steel wheels (or turf option)
• Rear tires: 24x10.5-10 4PR all-terrain on steel wheels (or turf option)
• Wheelbase: 1,955.8 mm (77 in.)
• Length: 2,745.7 mm (108.1 in.)
• Width: 1,525 mm (60 in.)
• Height: 1,108 mm (43.6 in.)
• Ground clearance: 145 mm (5.7 in.)
• Dry weight: 501 kg (1,105 lb)
• Fuel capacity: 18.9 L (5 U.S. gal.)
• Cargo box dimensions: 1,143 x 305 x 1,320 mm (45 x 12 x 52 in.)
• Cargo box capacity (weight): 272 kg (600 lb)
• Payload / towing capacity: 454 kg (1,000 lb)
• Hitch: Standard receiver hitch, 51 mm (2 in.)
• Battery / Alternator / Power port: Battery 12 V 340 CCA; Alternator 16.6 A; DC outlet 12 V
• Instrumentation: Fuel gauge, hour meter
• Storage: Cup holders, glove box
• Seating: Bucket seats (operator + passenger)
• Color: Green / yellow
• Power steering: No
• Country of manufacture: U.S.
