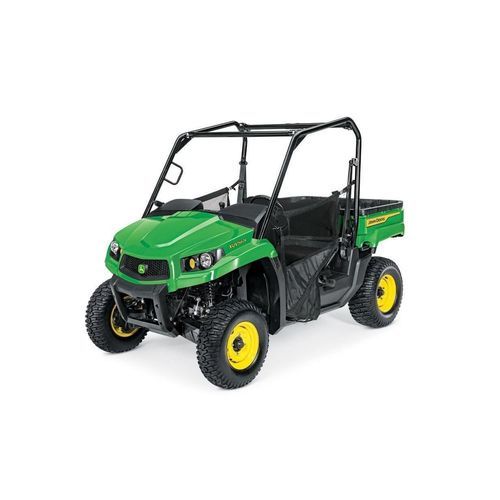

2-person utility vehicle XUV560E

gasoline4x4

Overview
The John Deere Gator™ XUV mid-size crossover utility vehicle (model XUV560E) is engineered for balanced acceleration, hauling, towing and off-road hill performance. Designed for agricultural and light-fleet operations, it combines a compact 570 cc V-twin engine, CVT drivetrain and independent suspension to deliver predictable handling and durable cargo capacity.

Drive system

• Continuously Variable Transmission (CVT) with clutch enclosure and two-clutch variable-speed drive transmitting power to a cast-aluminum transaxle with helical gears.
• Selectable 4WD with limited-slip front differential and dash-mounted rocker switch; rear traction assist (electronic differential lock) for improved traction in field conditions.
• Features slow-creep capability, water-protective full-clutch enclosure and high-speed fan on drive clutch for extended belt life.
• Mechanical front-wheel drive (MFWD) available/electronically selectable; front and rear CV shafts with maintenance-free CV joints protected by TPE boots.

Engine & Performance

• 4-cycle gasoline V‑twin, dynamically tuned carburetor, OHV — displacement 570 cc, rated 11.9 kW (16 hp) at 3600 rpm.
• Acceleration 0–24.1 km/h (0–15 mph) in ~3.5 s; top speed 45 km/h (28 mph).
• Air-cooled engine with full-pressure lubrication, spin-on oil filter and easy drain; large 18.5 L fuel tank and 200 W stator charging system.
• Cold-start capable to -28.9°C (-20°F); EPA and CARB compliant; spark-arresting muffler where required.

Comfort, Convenience & Instrumentation

• Operator-focused layout with bench seating for two, digital instrument display (speed, gear, MFWD/rear diff-lock indicators, hour/trip meter, oil temp sensor) and class-leading sealed storage.
• Multiple storage compartments, cupholders, under-seat storage (S4 models), hour meter, 12 V outlet and seven predrilled dash switch locations for accessories.

Cargo box

• One-piece HDPE copolymer cargo box supported by welded steel ladder structure; rust- and dent-resistant with truck-style tailgate and tool-free removal.
• Manual tilt with integrated handles; removable with two bolts for service; integrated tie-down points and accessory rail compatibility.
• Optional accessories: rail system, box mat, wall extensions, spare tire rack, bucket holder and more.

Cargo box specifications

• Length 820 mm (32.3 in.) — Width 1209 mm (47.6 in.) — Depth 297 mm (11.7 in.).
• Volume 0.25 m3 (8.9 cu ft) — Payload 227 kg (500 lb) — Dump angle 45° — Bed height 763 mm (30 in.).

Suspension & Chassis

• Four-wheel independent suspension: dual wide-arch A-arm front and independent rear with lower A-arm and upper camber link; 203 mm (8 in.) travel front/rear.
• Adjustable coil-over shocks, anti-roll bar with rubber-isolated links, ductile cast-iron knuckles and fully boxed lower A-arms for stability and durability.
• Optional FOX™ aluminum-body monotube shocks with adjustable preload available.

Brakes, Tires & Wheels

• 196 mm ventilated stainless-steel disc brakes at all four wheels with hydraulic twin-piston calipers; park in-transmission.
• Tire options: front 25x8-12 Terra Hawk or 26x8-14 Maxxis Bighorn 2.0; rear 25x10-12 Terra Hawk or 26x10-14 Maxxis Bighorn 2.0 on steel or alloy wheels.

Dimensions & Capacities

• Wheelbase 1.86 m (72.8 in.) — Overall length 2870 mm (113 in.) — Width 1435 mm (56.5 in.) — Height 1867 mm (73.5 in.).
• Ground clearance 267 mm (10.5 in.) — Curb weight 571 kg (1259 lb) with fluids — Payload 408 kg (900 lb) — Towing 680 kg (1500 lb).
• Standard 50 mm (2 in.) rear receiver; optional front receiver and recommended winch options for recovery tasks.

Protection, Styling & Accessories

• Off-road styling with paintable TPO panels, steel front bumper and skid plate; available protection packages and more than 75 attachments including roofs, windshields and lights.

Connectivity & Fleet Management

• JDLink M modem (factory or field install) connects to John Deere Operations Center for location, hours, geofencing, maintenance planning, diagnostics and selected fuel/usage telematics.

Notes

• Model/equipment availability varies by region and dealer; some features are option-dependent or model-specific.

Technical specifications

• Brand: John Deere
• Commercial model: XUV560E
• Engine type: 4-cycle gas, V‑twin, dynamically tuned carb, OHV — 570 cc — 11.9 kW (16 hp) @ 3600 rpm
• Transmission: CVT with clutch enclosure; transaxle park/high/low/neutral/reverse
• Fuel capacity: 18.5 L (4.9 U.S. gal.) — Top speed: 45 km/h (28 mph)
• Acceleration 0–24.1 km/h (0–15 mph) ≈ 3.5 s — Towing 680 kg (1500 lb) — Cargo box capacity 227 kg (500 lb)
• Cargo box dimensions: 820 x 1209 x 297 mm — Volume 0.25 m3
• Payload 408 kg (900 lb) — Wheelbase 1.86 m — Curb weight 571 kg
• Manufactured in U.S. — Page data collected: 8-Jun-22
