Tractor-mounted bale unroller XXL

mountedfeedingwith chain

Presentation

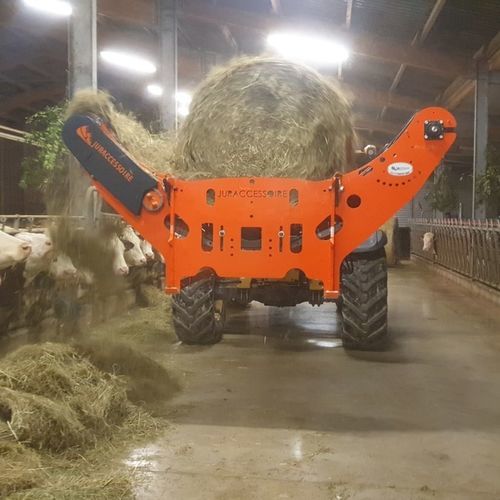

XXL bale unroller. Loading width 2.60 m. For wide carriers or bales from 1.20 m up to 2.30 m.

Features

• The wide loading area allows easy unrolling of large-diameter bales or standard bales with wide tractors or telehandlers (over 1.90 m).
• Reinforced roller chains with large-diameter rollers.
• 'Pick-and-work' system: hydraulic hoses remain on the bale spike; no need to disconnect at each loading.
• Unrolls to the right or to the left.
• Attaches front or rear (full symmetry).

Videos
Videos available showing the product in operation.

Technical specifications

• Loading inner width: 2.60 m
• Empty weight: 780 kg
• Permissible load: 1,400 kg
• Maximum bale diameter: 2.30 m
• Mounting type: Euro + 3-point
• Mounting position: front or rear
• Unrolling direction: unrolls right or left depending on bale winding
• Recommended minimum carrier weight (depending on bale): 4,500 kg
• Number of hydraulic hoses: 1 double-acting circuit (2 hoses)
• Free-return required: No
• Option 1: Alternative hitch for telehandler, loader tractor or similar
• Option 2: Gauge wheel for light carriers
