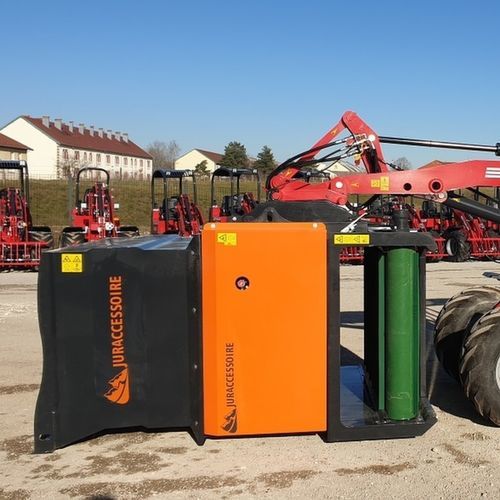

Tractor-mounted bale unroller CUBIC MASTER

beddingfor square bales

Summary
The CUBIC MASTER straw spreader for square bales is designed for stall bedding with long or short straw. Depending on straw type and feed rate, the machine can project material from 0 to 2.50 m to the left or right. The lower section is removable for central bedding. Three detangling rollers feed straw by gravity onto a wide conveyor to project left or right without violently throwing stones.

Key advantages :

• Operates with long-stem straw
• Low dust generation (no turbine)
• Compatible with small loader tractors (≈60 hp) or farm utility vehicles (min. 45 hp)
• High-end electro-hydraulic system to reduce hydraulic losses on low-power carriers (from 60 l/min)
• Narrow transport width: 1.62 m

Detailed description (technical data) :
Overall width: 1.62 m
Overall length (direction of travel): depending on hitch: 1.52 m
Overall height: 2.22 m
Empty weight: 960 kg
Usable volume: ½ square bale
Higher capacity: consult us
Round bale: No
Minimum hydraulic supply: 50 l/min at 160 bar
Minimum carrier weight (utility, tractor, ...): 2,300 kg
Standard hitch: Euro
Other hitch options: MX, Thaler, Weideman, Schaeffer, Manitou, CAT, Giant, Kubota, Merlo, SMS, Bobcat ... (consult us)
Ground-stabilizing support roller (during upright): Standard
Standard hydraulic and electrical supply: 1 double-acting circuit (drain) + 1 free return + 1 x 25 A socket
2-function magnetic electric joystick: Standard
Projection distance (depending on straw, flow and hydraulic pressure, lift height…): 0 to 2.50 m
3-function magnetic single-lever control: Included

Specifications / technical features

• Overall width: 1.62 m
• Overall length (depending on hitch): 1.52 m
• Overall height: 2.22 m
• Empty weight: 960 kg
• Usable volume: ½ square bale
• Higher capacity: consult us
• Round bale: No
• Minimum hydraulic supply: 50 l/min at 160 bar
• Minimum carrier weight: 2,300 kg
• Standard hitch: Euro
• Hydraulic and electrical supply: 1 double-acting (drain) + 1 free return + 1 x 25 A socket
• 2-function magnetic electric joystick: Standard
• Projection distance: 0 to 2.50 m
• 3-function magnetic single-lever control: Included
