Forestry rake

for tractors

Summary
Light forestry rake designed for tractors under 120 HP, intended for light-duty clearing and handling of branches and short logs.

Description
Forestry rake suitable for standard agricultural tractors for light applications (roadside collection, pushing branches, moving short logs). Not intended for intensive forestry use. Do not use with heavy forestry tractors or agricultural tractors over 120 HP for pushing stumps or large logs — consider the heavier model for such operations.

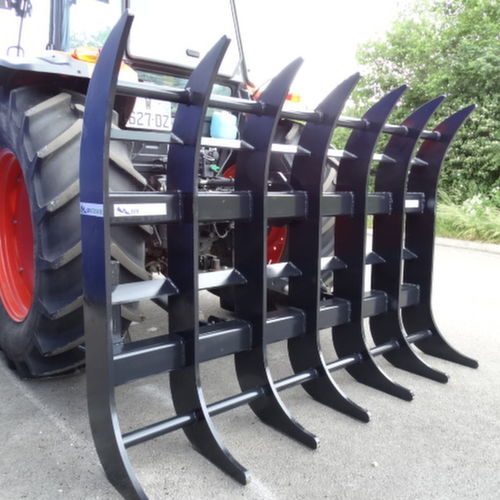

The rake is built with a lower beam and an upper beam connected by vertical tines.

Detailed specification
Unladen weight: 700 kg
Inner loading width: On request, e.g. 2.48 m
Hitch type: 3-point Cat.2 (front and rear linkage)
Minimum required power: 80 HP
Overall height: On request, e.g. 1.50 m

Characteristics / technical specifications

• Use: light duty (roadside collection, pushing branches, moving short logs)
• Not suitable for intensive use
• Construction: lower beam and upper beam connected by vertical tines
• Unladen weight: 700 kg
• Inner loading width: on request (e.g. 2.48 m)
• Overall height: on request (e.g. 1.50 m)
• Hitch type: 3-point Cat.2 (front and rear linkage)
• Minimum required power: 80 HP
