Forestry rake

for tractors

Short description

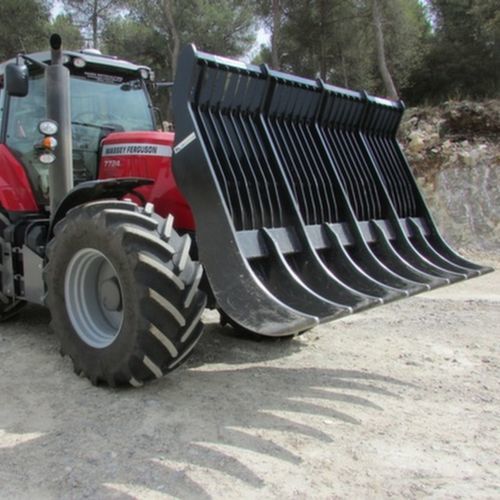

Forest rake JURACCESSOIRE for high-power tractors.

Description
Custom-made production. Width from 2.48 m to 4 m. Height 1.50 m or 1.80 m. Hitch: 3-point Cat. 2 and 3 with 2 lower anchors and 3 upper anchors to better adjust lift. The rake is made of 3 or 5 reinforced main tines. The number of tines is odd because one main tine rises facing the third point and the other two are at the ends. For wide rakes there are two additional intermediate main tines. Rakes are equipped at the upper part with reinforcements to prevent a tree section from passing through the rake and perforating the cab. Other widths and heights are available on request, as well as side tines to retain silage or compost for agricultural, composting or waste-site use.

Key points

• Very solid. Rustic.
• Good front grille protection.
• Multi-position hitch.
• Handcrafted, custom-made, 100% Franche-Comté.
• For tractors up to 380 HP.

Technical specifications

• Width: 2.48 m to 4 m.
• Height: 1.50 m or 1.80 m.
• Hitch: 3-point Cat. 2 and 3 with 2 lower anchors and 3 upper anchors (adjustable lift).
• Tines: 3 or 5 reinforced main tines (odd number; possibility of intermediate main tines on large widths).
• Upper reinforcements to protect against tree sections passing through and perforating the cab.
• Options: other widths/heights on request; side tines for silage/compost retention.
• Use: agricultural, composting, waste-site.
• Compatibility: for tractors up to 380 HP.
• Manufacture: handcrafted, custom-made, 100% Franche-Comté.
