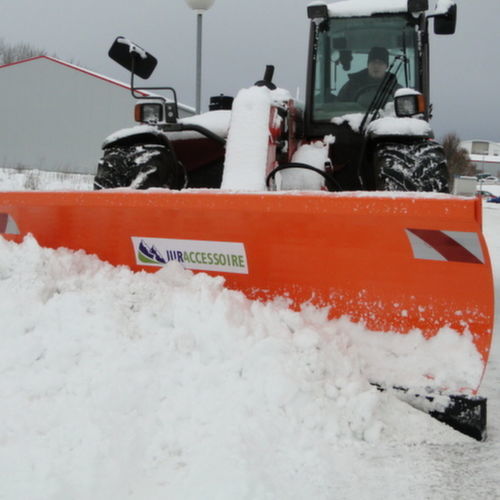

Straight snowplow blade 85300

wingwith hydraulic adjustment

Overview
Snowplow blade 85300 Juraccessoire. Overall height 85 cm, overall width 3 m.

Application
Designed for road and urban snow clearing: streets, small towns and parking areas.
Angled blade with hydraulic orientation operated by 2 cylinders.
Mounting: direct 3‑point hitch or floating hitch.

Key features

• Simple to operate.
• Effective ground following with floating and oscillating head.
• No gauge wheel or lower safety device required.
• Good snow roll-up behaviour; avoids snow trapping.
• Durable construction: boxed blade and headed box-section. All-steel construction.
• Handcrafted, 100% Franche‑Comté manufacture, made to measure.
• Suitable for mid-mountain use.

Dimensions and characteristics
Overall width flat: 3 m
Width when angled flat: 2.55 m
Overall height: 85 cm
Empty weight (depends on hitch type): 500 kg
Minimum required power: 70 CV (depending on snow)
Maximum required power: 300 CV (depending on snow)
Chassis: box-section blade curved from bottom to top, non-closing
Rubber edge: reinforced 4 cm
Head: boxed head

Technical specifications

• Overall width flat: 3 m
• Width when angled flat: 2.55 m
• Overall height: 85 cm
• Empty weight (depends on hitch type): 500 kg
• Minimum required power: 70 CV (depending on snow)
• Maximum required power: 300 CV (depending on snow)
• Chassis: box-section blade curved from bottom to top, non-closing
• Rubber edge: reinforced 4 cm
• Head: boxed head
