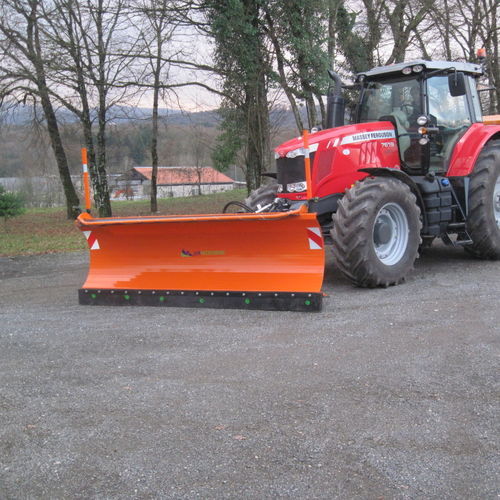

Straight snowplow blade 100300

with hydraulic adjustment

Description
Snow plough blade Juraccessoire 100300. Dimensions 1 m x 3 m. Hydraulic angling. Floating head. Oscillation. Safety relief valve on angling. 5 cm reinforced rubber cutting edge.

Use
For road clearing, town and village streets, parking areas. Angled blade with hydraulic angling operated by two cylinders. Option for twin-scrape, floating and oscillating head.

Key features

• Easy to operate. Very effective ground following.
• No gauge wheel or lower safety device required.
• Durable construction (box-section blade and head).
• Handmade, 100% from Franche-Comté, built to measure.
• Suitable for mid-mountain use.

Dimensions and characteristics
Overall width, flat: 3 m
Width when angled: 2.55 m
Overall height: Without twin-scrape: 1 m / With twin-scrape: 1.15 m
Unladen weight (depending on hitch type): Without twin-scrape: 590 kg / With twin-scrape: 720 kg
Minimum required power: 80 HP (depending on snow)
Maximum required power: 380 HP (depending on snow)
Chassis: Box-section blade curved from bottom to top, non-closing
Rubber cutting edge: 5 cm reinforced
Head: Box-section head

Technical specifications

• Overall width, flat: 3 m
• Width when angled: 2.55 m
• Overall height: Without twin-scrape: 1 m / With twin-scrape: 1.15 m
• Unladen weight (depending on hitch type): Without twin-scrape: 590 kg / With twin-scrape: 720 kg
• Minimum required power: 80 HP (depending on snow)
• Maximum required power: 380 HP (depending on snow)
• Chassis: Box-section blade curved from bottom to top, non-closing
• Rubber cutting edge: 5 cm reinforced
• Head: Box-section head
