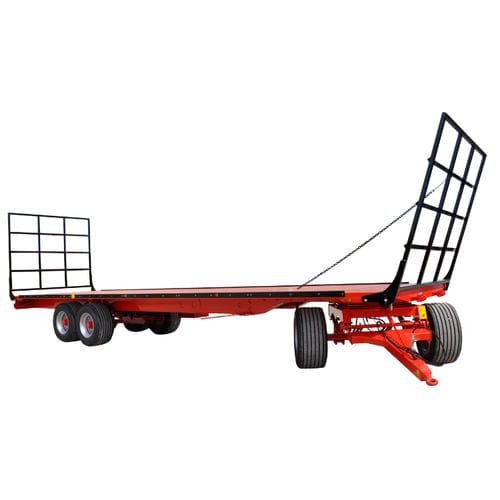

Flatbed trailer PL G series
3-axlefor bales

flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
Add to favorites
Compare this product


Characteristics

Construction
flatbed
Number of axles
3-axle
Application
for bales
Loading case lenght

Min.: 7,500 mm
(295.3 in)

Max.: 10,000 mm
(393.7 in)

Loading case width

2,450 mm
(96.5 in)

Description

Agricultural platforms Juscafresa destined for bales transport. Stands out for its rotating front axle that allows greater maneuverability. ​Standard equipped with: Revolving ring of balls external diameter 1050mm with diameter of balls of 22mm Height adjustable drawbar and spring suspended ECI100: Square rocker axle 100 mm, 1900 track, 10 bolts, brakes 400x80 Transport system ​ Rotating front axle with an angle about 90º approximately. The front axle has a leaves suspension to ensure the balance and vibrations absorption during displacements and most extreme rotations. Chassis ​Chassis with two side rails highly reinforced with rung. Drawbar and jack-stand ​Revolving ring of balls external diameter 1050mm with diameter of balls of 22mm. Height adjustable drawbar and spring suspended. System ​Optional front and/or back supports for bales. System ​Optional tight chain support. System ​Lateral or frontal sheave for the cables that subject the straws. ​System ​Lateral limit removable for round bales. Towing eye Scharmüller Revolving ring towing eye 208858 Scharmüller ISO 5692-1 essential for trailer registration. Ball towing eye 208863 Scharmüller ISO 24347 essential for trailer registration. Axle ​Square simple axle 100mm, track 1900, 8 bolts, brakes 400x80 (front) and square rocker axle 100mm, track 1900, 10 bolts, brakes 400x80 (back). ​ ​ ​
