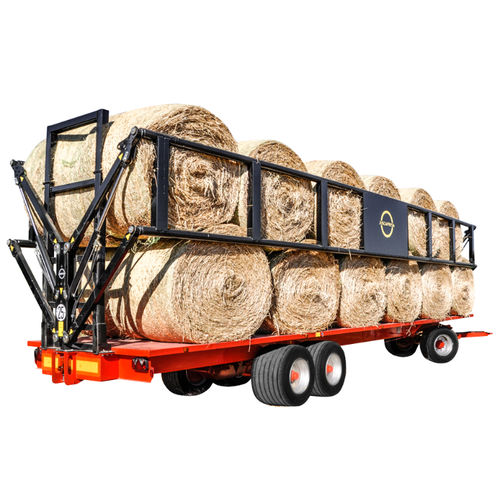

Flatbed trailer PL GC
3-axlefor baleswith hydraulic braking

flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
flatbed trailer
Add to favorites
Compare this product


Characteristics

Construction
flatbed
Number of axles
3-axle
Application
for bales
Brake system
with hydraulic braking
Loading case lenght

10,000 mm
(393.7 in)

Description

Agricultural platforms Juscafresa destined for bales transport. Stands out for its rotating front axle that allows greater maneuverability and its incorporated hydraulic system to hold the bales. ​Standard equipped with: Revolving ring of balls external diameter 1050mm with diameter of balls of 22mm Hydraulic system to hold the bales Height adjustable drawbar and spring suspended ECI100: Square rocker axle 100 mm, 1900 track, 10 bolts, brakes 400x80 Transport system ​Incorporated hydraulic system to hold the bales. Rotating front axle with an angle about 90º approximately. The front axle has a leaves suspension to ensure the balance and vibrations absorption during displacements and most extreme rotations. Chassis ​Chassis with two side rails highly reinforced with rung. Drawbar and jack-stand ​Revolving ring of balls external diameter 1050mm with diameter of balls of 22mm. Height adjustable drawbar and spring suspended. Towing eye Scharmüller Revolving ring towing eye 208858 Scharmüller ISO 5692-1 essential for trailer registration. Ball towing eye 208863 Scharmüller ISO 24347 essential for trailer registration. Axle ​Square simple axle 100mm, track 1900, 8 bolts, brakes 400x80 (front) and square rocker axle 100mm, track 1900, 10 bolts, brakes 400x80 (back).
