Square baler KE 3250

large

Overview

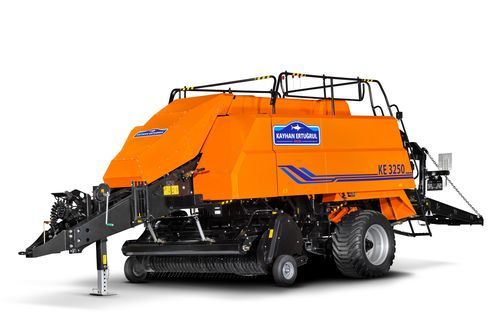

The KE 3250 large square baler is designed for professional and large-scale farming operations. It produces consistent high-density bales with an 800×700 mm cross section and offers adjustable bale length to suit various crops and logistics requirements.

Features

• Wide pickup: 2250 mm effective working width (2600 mm outside wheels) for high field throughput.
• Heavy-duty piston system for faster, more powerful baling.
• Adjustable bale length up to 2740 mm, producing uniform 800×700 mm bales.
• Hydraulic bale density adjustment configurable from the operator panel for different crop types.
• 4-string double-knot tying system with 30-spool polypropylene storage for secure tying.
• 20-point timed automatic lubrication system to reduce service intervals.
• Hydraulic fan-assisted cleaning for optimal tying-group performance.
• Multiple clutch and overload protection systems for safe operation in harsh field conditions.
• Requires 120 HP tractor power; suitable for professional use.
• Productivity approximately 55 bales/hour with bale weights typically 250–350 kg.

Technical Details
PICKUP SYSTEM
Width (Outside of Wheels / Effective Working Width) | mm | 2600/2250
Tine Spacing / Number of Pickup Bars | mm/pcs. | 66
Number of Pickup Tines | pcs | 128
Overload Protection | - | Clutch system and one-way binding
Pickup and Other Chain Lubrication System | - | Timed automatic

BALE FEATURES
Bale Dimensions | mm | 800x700
Bale Length (max) | mm | 2740
Bale Density Pressure Adjustment | - | Hydraulic, adjustable via manual control panel
Tractor Power | hp | 120
Bale Weight | kg | 250-350
Work Efficiency | bale/h | 55

TYING UNIT
Tying System | - | 4-string double knot
Tying System Lubrication | - | Timed to 20 points
Overload Protection | - | Shear bolt
Cleaning System | - | Hydraulic fan
Twine Type / Storage | - | Polypropylene, 30-spool storage

FORK SYSTEM
Overload Protection | - | Multi-plate clutch system

BALE CHAMBER
Piston Stroke | mm | 740
Piston Stroke Counter (1000 rpm) | stok/min. | 47
Feeding Window | - | Not specified

Note
Kayhan Ertuğrul Mak. San. ve Tic. A.Ş. reserves the right to make changes to the class and technical specifications of its products without prior notice.

Specifications

• Model: KE 3250
• Pickup effective working width: 2250 mm (outside of wheels 2600 mm)
• Number of pickup tines: 128
• Bale dimensions: 800 × 700 mm
• Maximum bale length: 2740 mm
• Tractor power required: 120 HP
• Bale weight range: 250–350 kg
• Capacity: approx. 55 bales per hour
• Tying: 4-string double knot, 30-spool polypropylene storage
• Piston stroke: 740 mm; piston stroke counter (1000 rpm): 47
