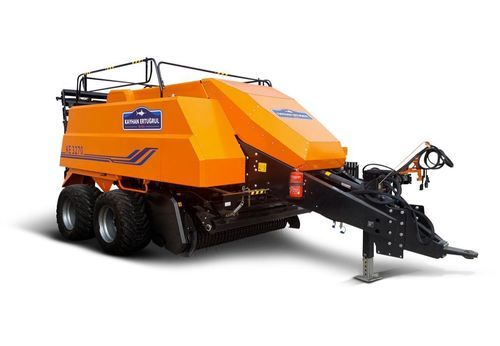

Square baler KE 3270

large

Product overview
The KE 3270 large square baler is built for professional and large-scale agricultural operations. It combines a wide pickup, heavy-duty piston system and 6-string double-knot tying technology to produce large, uniform and heavy bales with high throughput and reliable field performance.

Key features

• Wide pickup system for high working efficiency: 3000 mm pickup width (2250 mm effective).
• Heavy-duty piston system delivering faster and more powerful baling strokes.
• Consistent large bale dimensions: 1200 x 700 mm; adjustable bale length up to 2740 mm.
• Hydraulic bale density adjustment for optimal compression across different crops and conditions.
• 6-string double-knot tying system for secure and durable tying.
• 26-point time-controlled automatic lubrication system to reduce maintenance intervals.
• Hydraulic fan-assisted cleaning for reliable tying unit operation.
• Multiple clutch and overload protection systems to protect components in harsh fields.
• Designed for tractors with 160 HP power requirement.
• High productivity: approximately 55 bales per hour.
• Typical bale weight: 350–500 kg, facilitating transport and storage efficiency.
• Durable chassis and heavy-duty components for long service life.

Technical details
PICKUP SYSTEM
Width (Outside / Effective): 3000 / 2250 mm
Tine Spacing / Pickup Bars: 66 mm / 4 pcs
Number of Pickup Tines: 128 pcs
Overload Protection: Clutch system and one-way binding
Pickup and Chain Lubrication: Timed automatic system

BALE FEATURES
Bale Dimensions: 1200 x 700 mm
Max Bale Length: 2740 mm
Bale Density Adjustment: Hydraulic, adjustable from manual control panel
Tractor Power Requirement: 160 HP
Bale Weight: 350 - 500 kg
Work Rate: ~55 bales / h

TYING UNIT
Tying System: 6-string double-knot tying
Tying Lubrication: Timed 26-point automatic lubrication
Overload Protection: Shear bolt
Cleaning System: Hydraulic fan
Twine Type / Storage: High-quality polypropylene, 30-spool storage

FORK SYSTEM
Overload Protection: Multi-plate clutch system

BALE CHAMBER
Piston Stroke: 740 mm
Piston Stroke Counter (1000 rpm): 47 stroke / min
Feeding Window: 3270 mm

Note
The manufacturer reserves the right to modify specifications without prior notice.

Technical specifications

• Model: KE 3270
• Pickup width (outside/effective): 3000 / 2250 mm
• Pickup tines: 128 pcs
• Bale dimensions: 1200 x 700 mm
• Max bale length: 2740 mm
• Tractor power requirement: 160 HP
• Bale weight range: 350 - 500 kg
• Productivity: ~55 bales/hour
• Tying: 6-string, double-knot system
• Lubrication: 26-point timed automatic system
• Bale density: Hydraulic adjustment via manual control panel
• Piston stroke: 740 mm
