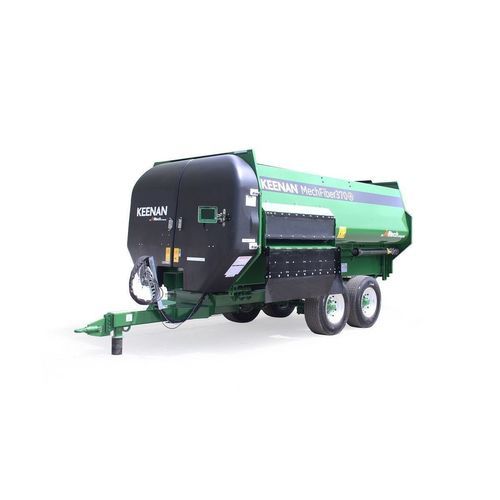

Horizontal mixing wagon MechFiber370+

towedside discharge2-auger

Product Details
The MechFiber370+ sets new standards in ration mixing, combining KEENAN’s unique MechFiber technology with high capacity. It will feed 100+ cows in a single load. This diet feeder is ideal for medium to large scale farms. With its high auger positioning, feeding into high troughs or barriers is easy. It comes with or without Bale Blending technology. There are a variety of optional extras that can also be chosen.

• Lower power, torque and fuel requirements: The MechFiber370+ can be towed with a 90HP tractor. To drive the mixer, when loaded, requires approximately half this power delivering substantial savings in overall fuel consumption (and often size of tractor) compared with other mixers.
• Simple two-chain drive system: KEENAN’s simple two-chain drive system has an unbeatable track record of reliability. A primary drive chain and three sprockets transmit power to the auger and idler. A second sprocket powers the much larger paddle sprocket.
• Automatic oiler: An automatic oiling system can be fitted as an option and is operated by the hydraulic rams opening and closing the guillotine door. This delivers ‘pulses’ of oil to the drive chains, lubricating them to the optimum levels for safety and improved chain life.

Customisation Options

• Higher auger ideal for high troughs.
• Automatic oiler & 2 chain drive system.
• Bale Handler option.
• Full length auger for consistent feed-out.
• Variable feed control & feed-out height.

Other Key Benefits

• Fresh new look with specially moulded black pin seal matt finish front covers.
• Rear ladder made of sleek tubular steel – user-friendly, collapsible and less prone to damage.
• Mixing chamber containing 6-paddle reel with new style paddle castellations ­– improved mix quality, less horsepower required, less machine wear.
• The paddles gently lift & tumble the added materials across the blades ensuring feedstuff is cut to an optimal length without destroying the quality of the fibre. This is to create a mix with the correct chop length & structure for optimum rumen health – improved herd health and productivity.
• Option to add lights over feed-out door and increase the length of the feed-out door – easy to see when ambient lighting is low and quicker feed-out.
• 4th Generation KEENAN Controller, feed management App and InTouch platform for full oversight of the mixing process and all farm data – see ingredient list and order, monitor costs, refusals etc.
• Option of key telematics on Controller – oil sensors, chain tension sensor etc. – helps to maintain machine in good working order

Specifications / Technical Characteristics

• Category: MechFiber+
• Size: Large (L)
• Height: 3,200mm (126")
• Width: 2,856mm (112.5")
• Horsepower: 105 HP
• Dairy Cows per load: 100-140
• Finishers per load: 200-280
