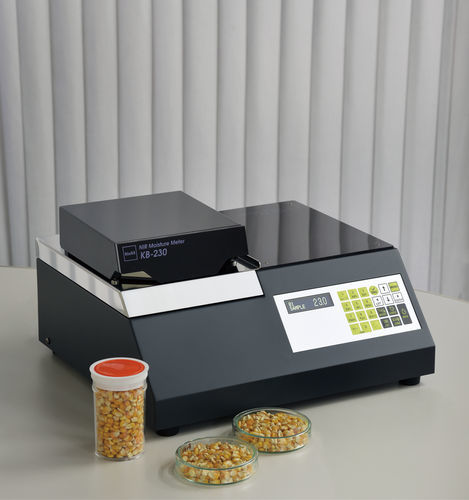

Desktop analyzer KB-230
grainmoistureportable

desktop analyzer
desktop analyzer
Add to favorites
Compare this product


Characteristics

Analyzed product
grain
Measured value
moisture
Configuration
portable, real-time, desktop
Other characteristics
NIR

Description

-Desktop moisture analyzer uses reflected light of near-infrared light -Displays results in several seconds after applying light -High flexibility of sample container and measurement over a plastic bag available -Creates calibration curve by operating keys on the main unit Specifications Measurement method - Near-infrared reflection, light projected/received at the bottom plane Spectroscopy - Filter Measurement spot - Diameter: approximately 25 mm Number of calibration curves - 50 Measurement speed - Normal measurement: 7 sec. (subject to thesetting)Continuous measurement: 0.5 sec. interval Display - Organic EL Input/ Output - USB (for PC I/O), RS-232C (for printer output) Light source - Tungsten lamp Operating humidity range - 5 to 35°C (no condensation) / 30 to 80%RH Power supply - 100-240 V AC (50/60Hz), 40W Dimensions/ Weight - 415(W)x370(D)x226(H)mm13㎏ Accessories - Light shielding cover, Sample cell (Petri dish,ø90 mm), Zero-adjustment plate,Sample cell holder, Power cable,Fuse (spare), First Guide, Operating Manual
