Volumetric water content moisture sensor KB-30
near infraredwith analysis softwarecable

Volumetric water content moisture sensor - KB-30 - Kett Electric Laboratory Co. Ltd. - near infrared / with analysis software / cable
Volumetric water content moisture sensor - KB-30 - Kett Electric Laboratory Co. Ltd. - near infrared / with analysis software / cable
Volumetric water content moisture sensor - KB-30 - Kett Electric Laboratory Co. Ltd. - near infrared / with analysis software / cable - image - 2
Add to favorites
Compare this product
Go to the Kett Electric Laboratory Co. Ltd. website for more information

Characteristics

Additional measurement
volumetric water content
Other characteristic
near infrared, with analysis software, cable

Description

Overview

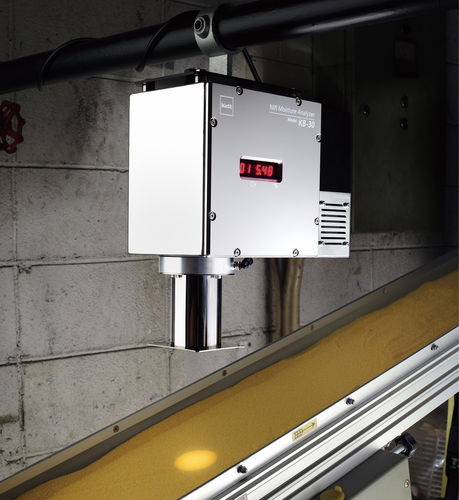

  • In-line NIR moisture analyzer for real-time, non-contact moisture measurement on production lines
  • IP66-rated for water and dust protection
  • Uncoated exterior prevents contamination from rust or peeling paint
  • Suitable for food, pharmaceutical, construction materials, biomass fuel and other industrial applications


Technical specifications
  • Measurement method: NIR reflectance / absorbance (filter spectrometer, 3 wavelengths)
  • Light source: Tungsten lamp
  • Measurement distance: 260 mm ± 30 mm
  • Measurement diameter: approx. Ø25 mm at 260 mm distance
  • Max. number of sensor heads: 30
  • Number of calibration curves: 50
  • Analog current output: 4-20 mA DC
  • External communications: RS-232C / RS-485
  • Ambient temperature / humidity: 5-40°C / 30-80% RH (no condensation)
  • Power supply: AC 100-240 V, 50/60 Hz
  • Power consumption: 50 W
  • Dimensions / Weight: 268(W) × 140(D) × 306(H) mm; 7.0 kg (including hood and cables)


Accessories & Options
  • Accessories: reference plate, power cable, RS-232C cable (2.9 m), bolts and washers set, operation manual, PC software and software manual
  • Options: Controller KJT-CNT2; cooling box for high-temperature environments; version for high-moisture samples; all-stainless-steel body; RS-485 cable; analog cable


Documentation
Brochure (PDF) and manuals including software manual are available for this product.
