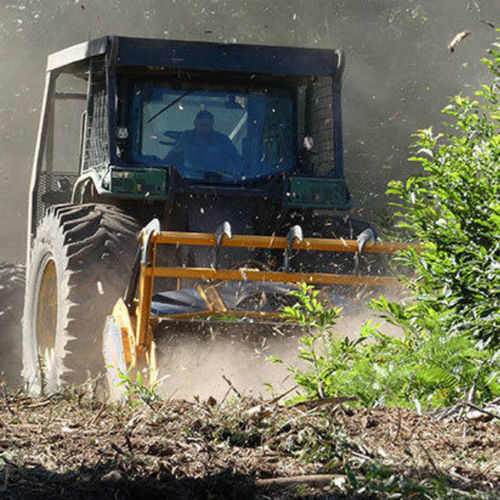

Mounted mulcher BFS series

hammerforestry64 hammers

Overview

• Carbide hammers for heavy-duty vegetation management, available with single or double carbide tips.
• Large-diameter rotor Ø 620 mm for high throughput and uniform shredding.
• Wide intake opening: 355–430 mm to handle large material.
• Refining comb included to improve output consistency.
• Standard tiltable gearbox for maintenance and adjustment.
• Hydraulically controlled expansion flap, retractable up to 100% for transport and safety.
• Dual drive system (2 × 6 XPB belts) with automatic belt tensioning via tensioner pulleys.
• Adjustable skids with 4 positions and CAT 3 hitch for tractor compatibility.
• High-quality steels and fully interchangeable internal housing for reduced operating costs.

Technical specifications (table)
Type | Number of hammers / V-shaped Rotor | Number of hammers / W-shaped Rotor | Number of belts | PTO speed (rpm) | Working width (m) | Power (HP) | Weight (kg)
BFS 225 | 64 | 88 | 2x6 XPB | 1530 | 2.25 | 350-450 | 4300
BFS 250 | 84 | 100 | 2x6 XPB | 1530 | 2.50 | 400-500 | 4600

Technical features

• Carbide hammers: single or double tip options to match vegetation type and wear requirements.
• Rotor Ø 620 mm ensures stable material flow and consistent particle size.
• Intake opening 355–430 mm for efficient feeding of branches and trunks.
• Refining comb and tiltable gearbox improve shredding quality and access for service.
• Hydraulic expansion flap retractable to 100% for safe transport and obstruction control.
• Robust construction with high-grade steels and quality components for longevity.
• Drive: dual 2 × 6 XPB belts with automatic tensioning for reliable power transmission.
• Adjustable skids (4 positions) and CAT 3 hitch for field adaptability and stability.
• Model BFS 225 — hammers V/W: 64 / 88; belts: 2x6 XPB; PTO: 1530 rpm; working width: 2.25 m; recommended power: 350–450 HP; weight: 4300 kg.
• Model BFS 250 — hammers V/W: 84 / 100; belts: 2x6 XPB; PTO: 1530 rpm; working width: 2.50 m; recommended power: 400–500 HP; weight: 4600 kg.
