Engine Equipment:Inkl. elektrischem Anlasser und elektronischer Einspritzanlage. Inklusive Zyklon-Luftfilter mit erhöhtem Ansaugkanal und Ölluftkühler.
Performance:16.9 kW / 23 PS
PTO:Mechanisch 825 und 960 U/min.
Comfortable, innovative, robust, easy to operate.

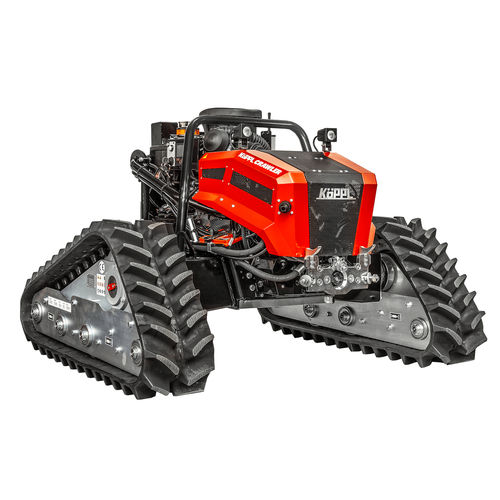

Work safety, flexibility, short set-up times and working comfort - these were the main goals in the development of the Köppl CRAWLER. The machine with 23 HP power and hydraulic drive is extremely compact, manoeuvrable and predestined for working on slopes as well as in difficult places such as delineators, crash barriers and traffic signs.
The CRAWLER's high gradeability and load-bearing capacity enable it to cope with steep slopes up to a slope angle of 120 percent. The long-range remote control allows the CRAWLER to be operated conveniently from the escort vehicle or standing close to the work area. The machine is easy to transport on the loading area and provides a clear view of the working area thanks to its independence from the support vehicle.
The finely tareable, powerful hydraulic drive with electronically monitored automatic straight-line tracking ensures that the machine runs exactly in line on the slope. Sensors continuously measure the wheel speed and transmit it to the control system. The driving speed can be set up to a maximum of 6 km/h on the remote control.
The robust direct power transmission through the mechanical PTO shaft ensures loss-free power supply to the attachments and is independent of the travel drive.
