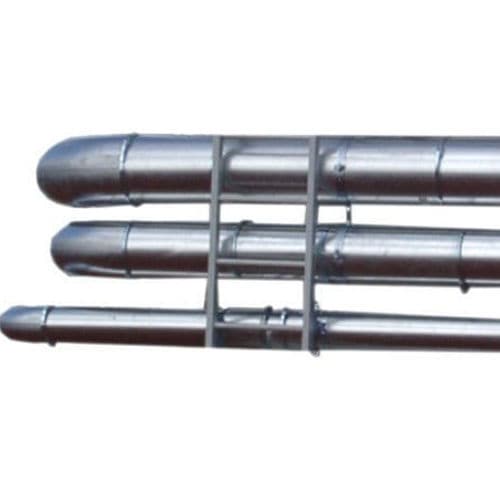

Flexible pipe FK series

Product overview
The FK pipe systems are modular pipe systems designed for ventilation and pneumatic conveying in industrial environments. They transport materials, dust and air using a wide selection of components (pipes, bends, branches, diverters, connectors) to create customised conveying and ventilation layouts that optimise space and process flow.

Flexible, modular design for efficient installation
FK systems feature modular components for rapid assembly and adaptation. Installation is performed with FK quick‑release clamps or bolt clamps, enabling fast set‑up and easy reconfiguration to existing layouts. Available diameters range from 60 mm to 800 mm to cover diverse industrial conveying distances.

Soundproof piping
FK 200 pipes and bends are offered with acoustic insulation for noise‑sensitive areas. Pipes are wrapped in two layers of 2 mm self‑adhesive bitumen (≈3.5 kg/m²) plus one layer of heat‑shrink tubing; bends are wrapped in one layer of 2 mm bitumen plus heat‑shrink tubing. This increases surface mass and damps vibrations for high‑impact materials (e.g., plastic granulate, pellets, finished parts, recyclables). Typical attenuation is ≈5–12 dB depending on installation and handled material.

Key features

• Durable construction: Engineered from high‑quality materials for long service life in industrial conditions.
• Efficient conveying: Optimised for airflow and material transport; suitable for ventilation and pneumatic conveying.
• Modular pipe system: Comprehensive component range including pipes, bends, branches, diverters and connectors for tailored layouts.
• Easy installation and flexibility: FK quick‑release clamps and bolt clamps allow fast assembly and adjustments to reduce downtime.

Benefits

• Cost‑effective installation: Modular design and quick‑release clamps reduce labour and installation time.
• Reduced maintenance: Robust construction lowers the need for frequent replacements.
• Optimised workflow: Tailored layouts and shorter conveying distances improve material flow and energy efficiency.
• Versatile integration: Wide diameter range supports integration into existing systems and future upgrades.

Applications

• Industrial ventilation systems
• Pneumatic conveying of granules, pellets, finished parts, recyclables, flash and rejects
• Dust and material transport in plastics, paper and packaging industries
• Custom conveying lines with bends, branches, diverters and connectors

Technical specifications

• Available diameters: 60 mm to 800 mm
• Sound insulation (FK 200): pipes wrapped in two layers of 2 mm self‑adhesive bitumen (≈3.5 kg/m²) + one layer of heat‑shrink tubing; bends wrapped in one layer of 2 mm bitumen + heat‑shrink tubing
• Estimated acoustic reduction: ≈5–12 dB (dependent on installation and material handled)
• Typical components: pipes, bends, branches, diverters, connectors
• Clamping options: FK quick‑release clamps or bolt clamps
• Designed use: ventilation and pneumatic conveying (materials, dust, air)
• Construction: high‑quality, durable materials (manufacturer specification)
