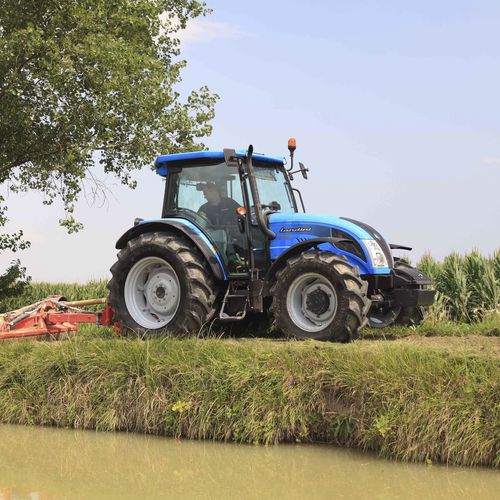

Power-shift tractor 5H T3 series
power shuttlewith cab

power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
Add to favorites
Compare this product

Characteristics

Transmission
power-shift, power shuttle
Other characteristic
with cab
Engine power

74 ch, 83 ch, 93 ch, 102 ch, 110 ch (74 hp)

Description

TECHNOLOGICAL EVOLUTION The 5H Series is midway between the Powerfarm of which it inherits the cab and the wheel base, and the more structured Powermondial Series featuring a 3 ranges Powershift, i transmission, epicyclic final drives and power lift. The engine hood has been restyled to reflect the Landini family feeling and the taillights are a new design. The modular and versatile transmission is available with four synchronized gears and three mechanical speed ranges (SPEED FOUR) with hydraulically controlled oil-bath multi-plate PTO as a basic version. The entry level 12 +12 is available on both 18.7 MPH (30 kPH) and 25 MPH (40 kPH) versions and is combined with an intermediate 24 +12 version equipped with mechanical reverse shuttle and overdrive (TECHNO VERSION). A substantial novelty is represented by the combination of the hydraulic reverse shuttle with the T Tronic three-shift option ( H-M-L high-medium-low) which triples the gears of the basic transmission to achieve 36 forward + 12 reverse speeds. (TOP VERSION). A creep transmission is available as an option on TECHNO 2WD and TOP versions. The Top version is equipped with a De-clutch system allowing the operator to change mechanical gears by simply depressing the button placed on the gear shift lever without using the clutch pedal. The De-clutch system is engaged by an electronic control unit, the same one controlling the hydraulic reverse shuttle, the T Tronic H-M-L gearbox and the PTO. The PTO comes with a choice of 3 speeds – 540, 750 (540 Eco) and 1000 rpm according to the requested version.
