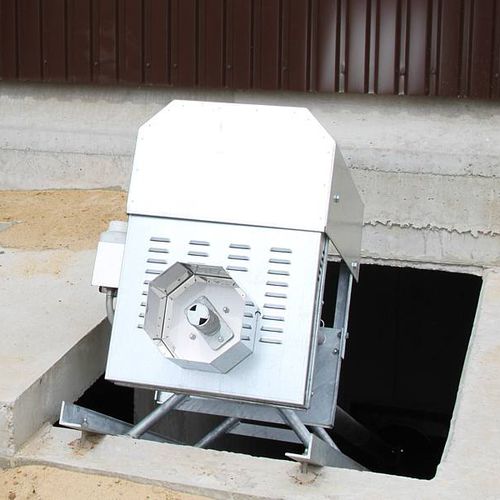

Horizontal slurry mixer

PTO-drivenelectrically-powered

Top of the range model with a powerful performance This long shaft mixer is designed especially for circulation channels, slalom systems or for cross channels with manure removal opening. It is our actual top-model providing strong mixing output The agitator is available with a rectangular compartment for installation by means of guard rails and built-in wall box or with a round compartment for concrete cone installation. Both pull and push blades can be applied. The motors operate with ratings from 5.5 to 22 kW and 1450 RPM and are driven with a reduction gear transmission via v-belt. Therefore, the rotational speed of the propeller can be reduced by the use of larger blade diameters. Bigger propeller wings show a decisive increase in performance especially concerning thick cattle slurry. Sealing is ensured by mechanical face seals. A switchbox with timer should be used to control the operation of the agitator and to ensure regular continuous stirring. A PTO through shaft is available at extra cost. The direct drive via the tractor’s PTO unit allows to significantly increase the stirring output if needed. The electric motor has to be decoupled in case when a tractor is used as driving device.
