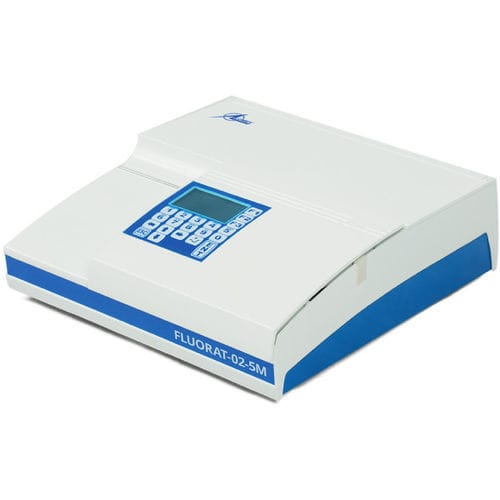

Fluorometer Fluorat-02 series

About
Fluorat-02 is a multifunctional filter fluorometer for quantitative analysis of water, soil and food samples. The instrument detects organic and inorganic analytes using fluorescence, chemiluminescence, phosphorescence and photometry methods.

Key technologies
Both FLUORAT-02-4M and FLUORAT-02-5M perform fluorescence, chemiluminescence and photometry measurements. FLUORAT-02-4M additionally provides time-resolved phosphorescence (gating mode) for high-sensitivity and selective uranium determination. FLUORAT-02-5M can be configured as a nephelometer to measure turbidity.

Features and advantages

• Low detection limit (example: 5 μg/L for phenol)
• Fast analysis with reduced reagent consumption
• Capability to determine a wide variety of analytes
• 4-in-1 instrument: fluorometer, chemiluminometer, photometer and nephelometer
• Improved analytical selectivity compared with conventional photometric instruments
• COD analysis capability when combined with the TERMION thermoreactor
• FluoRate software compliant with FDA 21 CFR Part 11

Applications
WATER

• Total petroleum hydrocarbons (TPH)
• Anionic surfactants
• Chemical Oxygen Demand (COD)
• Fluorescein
• Aluminium
• Arsenic
• Boron
• Nitrites
• Uranium (FLUORAT-02-4M only)
• Zinc
• Turbidity

SOIL

• Total petroleum hydrocarbons (TPH)

FOOD AND FEED

• Vitamin B1 (thiamine)
• Vitamin B2 (riboflavin)
• Selenium

PHARMACEUTICALS

• Aluminium

Software
FluoRate software controls FLUORAT-02-4M and FLUORAT-02-5M analyzers and processes data obtained by fluorescence, phosphorescence and photometric methods. The software meets FDA 21 CFR Part 11 requirements.

Equipment and options

• Fluorat-02 analyzer (base set includes quartz cells, optical filters and FluoRate software)
• Analysis kits (available on request)
• TERMION thermoreactor for COD analysis

Warranty
The Fluorat-02 analyzer is covered by a 1-year full warranty.

Services
Installation and commissioning can be performed on customer site by company service engineers or by certified distributor service engineers.

Specifications

• Wavelength range (filter selection): 250–650 nm (FLUORAT-02-4M); 250–900 nm (FLUORAT-02-5M)
• Detection limit: 5 μg/L (phenol)
• Types of cells: quartz (L = 10 mm); glass vials for COD
• Power supply: 110–240 VAC, 50/60 Hz, 36 W
• Dimensions (L×W×H): 305×320×110 mm
• Weight: 6.5 kg
