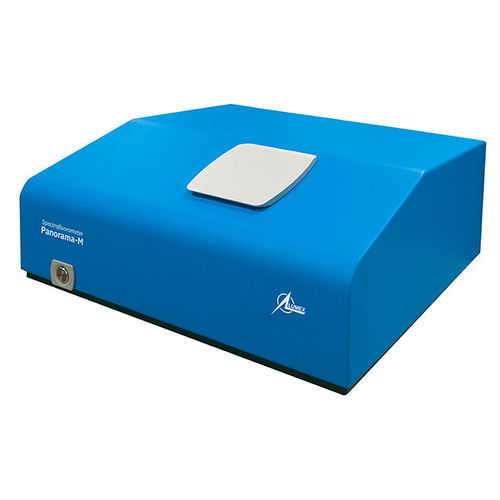

Fluorometer Panorama-M

About
Panorama-M spectrofluorometer is a research instrument designed for analysis of luminescence spectra of liquid and solid samples. Two independently controlled monochromators enable programmable measurement sequences and allow synchronous spectral scanning. A proprietary optical layout delivers high instrument sensitivity. Panorama-M uses a xenon flash lamp as the excitation source and a photomultiplier tube (PMT) as the luminescence detector. Reference and transmission channels are provided for measurement correction and improved accuracy.

Product identifiers
Brand: Lumex Instruments
SKU: 1230

Features and benefits

• Measurement of luminescence and transmittance characteristics, including time‑resolved modes
• Two independent monochromators in both excitation and emission channels
• Synchronous, asynchronous and two‑dimensional scanning modes
• Capability to study phosphorescence decay kinetics
• Long lifetime xenon flash excitation source
• Optional thermostatted sample compartment for temperature control

Technical specifications

• Spectral range (excitation and photometrical channels): 190–900 nm
• Spectral range (luminescence channel): 190–900 nm
• Wavelength accuracy: 0.5 nm
• Sensitivity (Raman band of water): >900:1 RMS signal-to-noise ratio (350 nm excitation, excitation and emission slits 6 nm, 2 s signal averaging)
• Power requirements: 110/230 V, 50/60 Hz, 40 V·A
• Dimensions (L×W×H): 400×450×200 mm
• Weight: 15 kg
