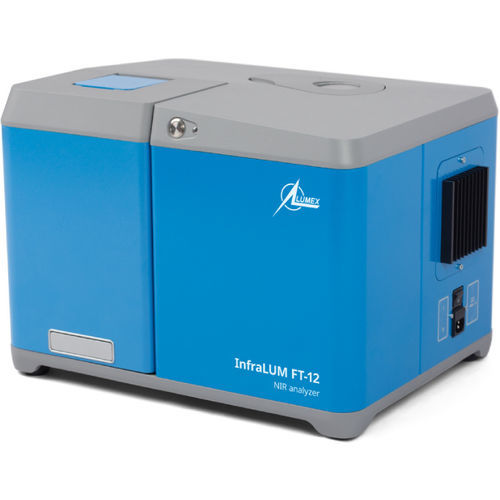

NIR analyzer InfraLUM FT-12

for grainsfor milkmeat

Product overview
InfraLUM FT-12 is an FT-NIR analyzer designed for rapid, non-destructive analysis of a wide range of agricultural and food matrices. It performs transmission measurements in about 1 minute and typically requires no sample preparation, enabling simultaneous determination of multiple parameters in a single run. Using Fourier-transform NIR spectrometry, the instrument delivers reproducible results without reagents or chemical waste.

FEATURES AND BENEFITS

• Simultaneous determination of multiple parameters within 1 minute
• High accuracy from Fourier-transform NIR spectrometry
• Transmission spectra provide more informative data than reflectance for many matrices
• Whole-grain analysis without milling or grinding
• No reagents or consumables required
• Waterproof and dustproof optical compartment for the interferometer
• Open calibration models with the possibility to extend existing calibrations
• User-friendly SpectraLUM/PRO software compliant with FDA 21 CFR part 11
• IQ/OQ documentation and protocols available

APPLICATIONS

• Grains, cereals, flour and milling products (protein, moisture, fat, fiber, starch, ash)
• Feed, compound feed and raw materials for feed production (protein, moisture, fat, fiber, amino acids)
• Legumes and pulses
• Oilseeds, oils and processed products (oil content, protein, moisture, fiber, ash)
• Milk and dairy products (fat, protein, lactose, density, dry matter, casein)
• Meat, fish and processed products (protein, moisture, fat, ash, phosphorus, calcium)
• Bakery products
• Sauces and liquid condiments
• Wine and beverages
• Other food and agricultural matrices

Operation with the instrument

• Fill the sample cell with the product and place it into the InfraLUM FT-12.
• Select the product and calibration from the menu and start the measurement.
• Result available in approximately 1 minute.

Equipment and options

• InfraLUM FT-12 FT-NIR analyzer supplied with a set of sample cells
• Calibration databases aligned with selected parameters of interest
• PC with Windows® OS (2 free USB ports) or PLC with touchscreen for integration

Warranty
InfraLUM FT-12 is covered by a 1-year full warranty.

Technical specifications

• Analysis time: 1 min
• Sample volume: 3–60 ml
• Spectral range: 13200–8700 cm-1 (760–1150 nm)
• Resolution: 8, 16, 32, 64 cm-1
• Power supply: 90–260 VAC (48–62 Hz), 110 W
• Dimensions / weight: 530×450×380 mm / 32 kg
