NIR analyzer InfraLUM FT-12 Industrial

for grainsfor milkmeat

Overview

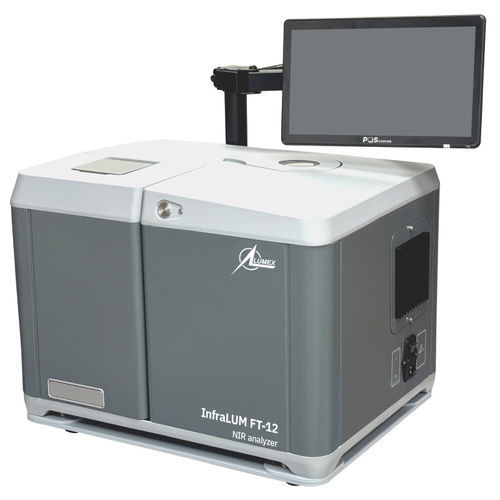

The InfraLUM FT-12 Industrial FT-NIR analyzer is a floor-mounted instrument for rapid, reagent-free analysis of liquids and pastes in industrial production and quality control. Designed to withstand vibrations and unstable power, it provides transmission FT-NIR spectra and delivers multi-parameter results suitable for process control and release testing in food, feed and agricultural processing sites. Typical parameters include moisture, protein, fat, fiber, ash and other nutritional and safety indicators.

Features and benefits

• Simultaneous determination of multiple parameters within approximately 1 minute
• Fourier transform FT-NIR for improved spectral accuracy
• Transmission measurement mode for enhanced information versus reflectance
• Autosampler components in stainless steel for industrial hygiene and durability
• Automatic locking system and antivibration platform for reliable operation on processing lines
• No reagents or routine consumables required, minimizing operating cost
• Waterproof and dustproof optical interferometer compartment for harsh environments
• Open calibration models allowing extension or adaptation of existing calibrations
• SpectraLUM/PRO software with FDA 21 CFR part 11 compliance for audit-ready records
• IQ/OQ protocols available to support installation qualification and operational qualification

Applications
InfraLUM FT-12 Industrial enables express analysis of nutritional and safety parameters across a broad range of products used in food and feed manufacturing, including:

• Oilseeds, oils and processing derivatives (oil content, protein, moisture, fiber, ash)
• Milk and dairy products (fat, protein, lactose, density, dry matter, casein)
• Meat, fish and processed products (protein, moisture, fat, ash, phosphorus, calcium)
• Sauces and dressings
• Wine and beverages
• Grains, cereals, flour and milled products (protein, moisture, fat, fiber, starch, ash)
• Feed, compound feeds and raw feed ingredients (protein, moisture, fat, fiber, amino acids)
• Legumes, bakery products and other processed foods

Operation with the instrument
1. Fill an appropriate sample cell (3–60 ml) and place it into the sample holder.
2. Select the product or calibration in the menu and start the measurement.
3. Results are reported in approximately 1 minute and can be exported to PC or PLC for process integration.

Equipment and options

• InfraLUM FT-12 Industrial FT-NIR analyzer with a set of sample cells
• Calibration databases tailored to lists of target parameters
• PC with Windows OS and 2 free USB ports or integration to PLC with touch screen (PLC optional)
• Optional PLC/touchscreen package and additional sample cell sets

Warranty
InfraLUM FT-12 Industrial is supplied with a 1-year full warranty.

Technical specifications

• Analysis time: ~1 min
• Sample volume: 3–60 ml
• Spectral range: 13200–8700 cm-1 (760–1150 nm)
• Resolution: 8, 16, 32, 64 cm-1
• Power supply: 90–260 VAC (48–62 Hz), 110 W
• Dimensions / weight: 530 × 450 × 420 mm / 35 kg
• Designed features: stainless-steel autosampler parts; automatic locking system; antivibration platform; PLC optional
• Software: SpectraLUM/PRO (FDA 21 CFR part 11 compliant)
• Protocols: IQ/OQ available
• Typical use cases: liquids and pastes; industrial environments with vibrations or unstable power
• SKU: 1248
