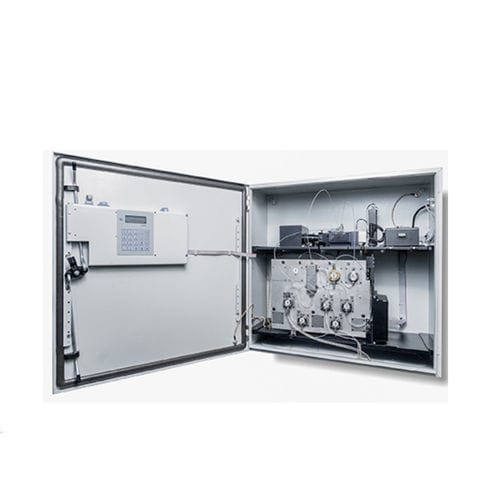

Oil analyzer AE-2

watercontinuous monitoringdigital

Overview
The Petroleum hydrocarbons analyzer AE-2 is designed for continuous automatic monitoring of total petroleum hydrocarbons (TPH) in potable, natural and waste water. It integrates a sample preparation unit and a fluorescence detector that performs hexane extraction using a patented chromato membrane technology. The analyzer supports standalone operation via a built-in microprocessor or remote control from a PC. Firmware allows custom sequences and adjustable flow rates from 0.02 to 20 ml/min. Data storage for up to 1000 values and a built-in LCD display provide on-site readout in mg/l. Outputs include RS-485 and a 4–20 mA current loop; an alarm relay is activated when thresholds are exceeded. Typical measurement cycle: 5–15 min (depending on sample concentration).

Principle of operation
Detection is based on measurement of fluorescence intensity proportional to TPH concentration after hexane extraction.

Features and benefits

• Continuous on-line monitoring for unattended operation
• Digital data processing and storage (up to 1000 values)
• Adjustable sample flow rate (0.02–20 ml/min)
• Low interference from suspended particles
• Automatic hydraulic cleaning in case of contamination
• Standardized data outputs: RS-485 and 4–20 mA

Application examples
Environmental monitoring:

• Manufacturing waste water monitoring
• Drain water monitoring at thermal and nuclear power plants
• Monitoring reservoirs with potential petroleum hydrocarbon sources
• Harbour and coastal water monitoring

Process monitoring

• Quality control of water in technological circuits of power plants
• Leak detection of oils and lubricants
• Monitoring of water‑preparation facilities
• Quality control of feed water for heating mains

Equipment and options

• Petroleum hydrocarbons analyzer AE-2
• Spare parts and accessories kit with flow cell
• Set of reagents for preparation of standard solutions
• Set of standard samples (TPH in hexane)
• Hydroseal for analysis under overpressure
• Flow switching device and valves for multiple sampling points

Warranty
All Lumex equipment is covered by a 12-month warranty.

Services
On-site installation and commissioning, user training, consultation, spare parts supply and repairs are provided; warranty repairs are free where applicable.

Specifications
Measurement range: 0.025 ÷ 20 mg/l
Measurements per hour: 3
Sample temperature: 4 ÷ 50 °C
Sample pressure: 0.1 ÷ 10 bar
Data output: RS-485; Current loop 4–20 mA
Signal status outputs: "Alarm", "Operation", User-defined
Power supply: 180-240 V, 50 Hz
Power consumption: Up to 100 VA
Ambient conditions: Temperature +5 to +50 ºC; Humidity up to 80%
Dimensions: 600x600x250 mm
Weight: 50 kg

Technical specifications

• Measurement range: 0.025 ÷ 20 mg/l
• Measurements per hour: 3
• Sample temperature: 4 ÷ 50 °C
• Sample pressure: 0.1 ÷ 10 bar
• Data output: RS-485; Current loop 4–20 mA
• Signal status outputs: "Alarm", "Operation", User-defined
• Power supply: 180-240 V, 50 Hz
• Power consumption: Up to 100 VA
• Ambient conditions: Temperature +5 to +50 ºC; Humidity up to 80%
• Dimensions: 600x600x250 mm
• Weight: 50 kg
