Forestry crane 200 series

Overview

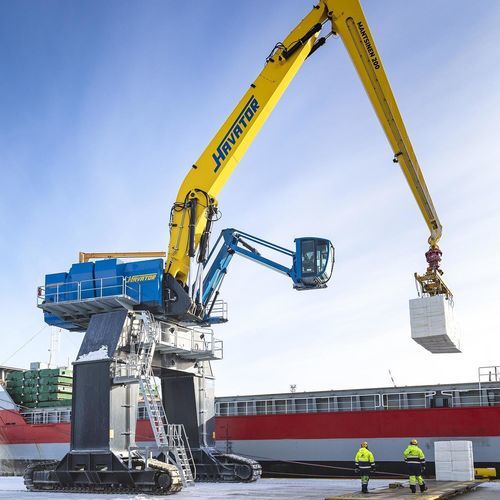

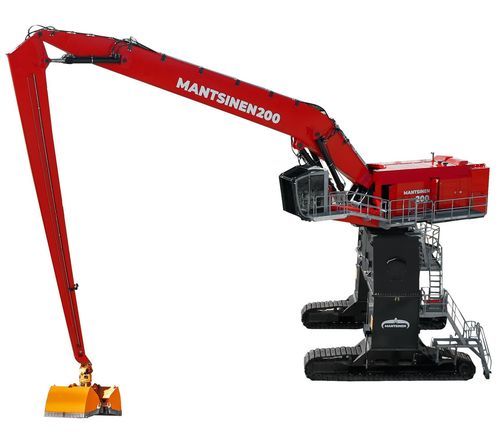

Mantsinen 200 is a heavy-duty harbour material handler engineered for efficient, precise loading, unloading and bulk handling in medium-size ports and terminals. The machine combines large working envelope with controllable agility and modular attachment options for diverse port applications.

Key benefits
The Mantsinen 200 delivers versatility, speed and precision across container handling, bulk cargo, scrap, steel products and general cargo operations. Quick coupling and modular attachments minimise downtime and increase throughput for terminal operators.

Handling examples

• Rebar beam & coil handling (with Automatic Quick Coupler MCA for fast attachment changes)
• General cargo handling (pulp bales, finished paper rolls)
• Scrap handling (high-reach, high-capacity operations)
• Bulk handling (large clamshell buckets for efficient loading)

Highlights / Features

• Max. reach: 125 ft (maximum reach capability)
• High handling capacity: up to 1,200 tons/h (application dependent)
• Hybrilift system
• Elevated spacious operator cabin for improved visibility and ergonomics
• Load control system for precise material handling
• Automatic Quick Coupler (MCA) for rapid attachment changes
• Mantsinen Dualpower option combining electric and diesel operation
• Mantsinen Insight™ telematics and machine monitoring available

Reach & capacity (examples)
125 FT — Bulk, Wood, Scrap
98 FT — Universal Cargo, Steel Products
66 FT — Containers

Sustainability
CO2 emission examples per handled ton (Rauma, Finland; based on green electricity):

• Conventional Diesel: 472 g/t
• Mantsinen Diesel: 302 g/t
• Mantsinen Electric: 0 g/t

Downloads & media
Product page includes video and brochures with technical data, configuration options and performance charts.

Technical specifications

• Model name: Mantsinen 200
• Max. reach: 125 ft (≈38 m)
• Handling capacity (indicative): up to 1,200 tons/h
• Container handling: up to 5 rows wide × 4 high (with appropriate configuration)
• Attachments: clamshell buckets, lifting beams, wire coil hooks, orange-peel grabs, etc. (quick coupling via MCA)
• Operator cabin: elevated, spacious
• Control features: load control system; optional telematics (Mantsinen Insight™)
• Powertrain options: Diesel, Mantsinen Diesel, Electric and Dualpower
