Forestry crane 120

Overview The Mantsinen 120 is a versatile material handler designed for efficient loading and unloading in ports, terminals and mills. It combines long reach with modular undercarriage and powertrain options to match operational needs for bulk, wood and scrap handling.

Key selling points

• Multipurpose machine for bulk, round wood, sawn timber and scrap
• Agile and precise handling to support high throughput in small and mid-size terminals
• Available in Diesel, Mantsinen Diesel optimized and Electric/DualPower configurations to enable low or zero CO2 emissions with green electricity
• Fast and safe attachment coupling for rapid change between work tools

Highlights POWER AND AGILITY UNITED — designed for port and terminal operations where reach, maneuverability and modular configurations are required. Multiple upperstructure and undercarriage options allow adaptation to site constraints and drive-through or gantry operations.

Examples of applications

• Bulk handling — fast and efficient bulk material flows for ship loading and unloading

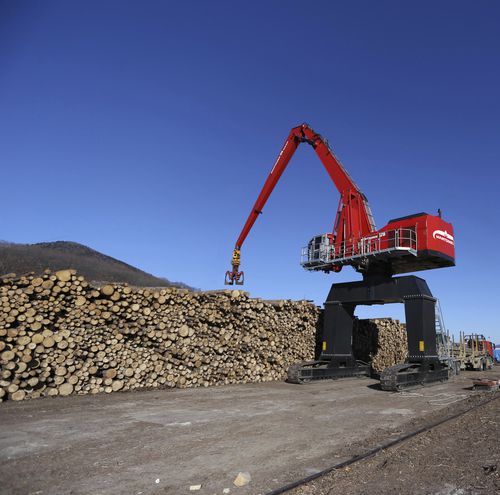

• Wood handling — adaptable for round wood, pulp bales and sawn timber

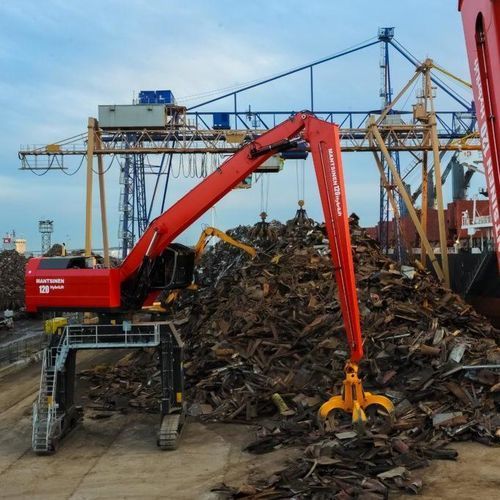

• Scrap and universal cargo handling — flexible attachment options for varied commodities
• Low-emission operations — electric and hybrid configurations for reduced CO2 footprint

Sustainability Emission examples per handled ton (illustrative): Conventional Diesel: 472 g/t
Mantsinen Diesel: 302 g/t
Mantsinen Electric: 0 g/t

360° & multimedia Interactive 360° visualization and rich media (images and interactive viewer) are provided to review machine layout, attachments and working examples.

Technical specifications

• Model: Mantsinen 120
• Brand: Mantsinen
• Max. reach: 92 ft (28 m)
• Reach from center (examples): 92 ft (bulk/primary), 72 ft (universal cargo)
• Capacity: 800 t/h
• Typical material types: Bulk, Wood (round wood / sawn timber), Scrap, Universal cargo
• Undercarriage options: rubber tire, track, rail, fixed frame; optional gantry-style undercarriage
• Powertrain options: Diesel, Mantsinen Diesel optimized, Electric, DualPower (hybrid electric/diesel)
• Key features: fast attachment coupling, modular design, Mantsinen Insight telemetry and fleet analytics
• Typical use cases: ship loading/unloading, terminal and mill material handling
