Band sawmill 2

horizontalverticalstationary

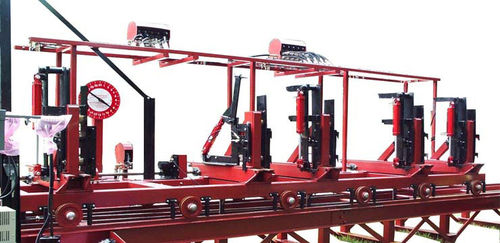

The Meadows Model 2 Sawmill has provided profitable service for sawyers throughout the world by featuring a welded 8" channel and 4" x 6" steel frame, handset and hydraulic configurations, and 2 headblocks w/ 39” openings. Specifications •Carriage frame constructed from 4" x 6" tube •Ratchet cable tightner •8" diameter carriage wheels with tapered roller bearings in wheel hubs •Track scrapes or Super Scrapes (covers entire wheel) •Carriage axles, 1 11/16" diameter •Carriage axles attached to carriage with cast steel hangers (axle is stationary and wheel spins) •Standard track frames either 45' or 50', custom lengths are available •Standard and Heavy headblocks offered standard with replaceable face plates, 39" opening •Replaceable UHMW wear strips between the knee and the base •1 11/16" diameter set shaft •1 15/16" diameter cable drum shaft standard on handset #2 sawmills •2 3/16" diameter cable drum shaft standard on hydraulic #2 sawmills •Cable drum is 11" diameter with a 18" face and uses 9/16" cable •Mandrel is 2 15/16" diameter with 8" saw collars, lengths vary •Offbearing conveyor driven from the mandrel, available in either 14' length with 18" belt or 75" length with 18" belt, custom lengths are available •Saw guide with remote adjustment arms
