Band sawmill 3
horizontalverticalstationary

band sawmill
band sawmill
band sawmill
band sawmill
Add to favorites
Compare this product


Characteristics

Type
band
Form
horizontal, vertical
Construction
stationary

Description

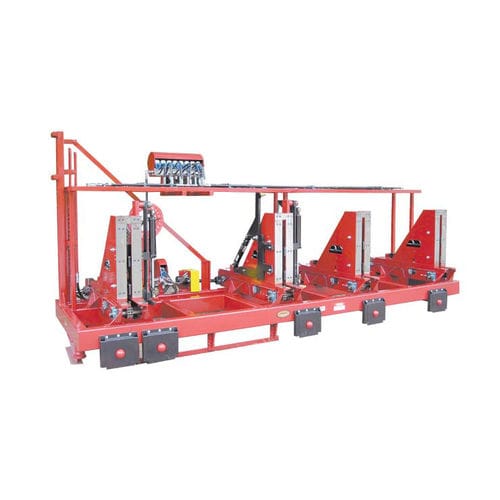

The Meadows Model 1 Sawmill features a welded steel frame constructed from 6" channel, 6" W-beam, and 4" x 4" tube which makes for a strong, durable product. The Meadows model 1 sawmill is available in handset or hydraulic configurations. Specifications •Carriage frame constructed from 3" x 4" tube •Ratchet cable tightner •6 1/2" diameter carriage wheels with tapered roller bearings in wheel hubs •Track scrapes •Carriage axles, 1 11/16" diameter •Carriage axles attached to carriage with cast steel hangers (axle is stationary and wheel spins) •Standard track frames either 45' or 50', custom lengths are available •Steel headblocks with replaceable face plates, 33" opening •Headblocks available with single or double #50 adjustment chains •Replaceable UHMW wear strips between the knee and the base •1 11/16" diameter set shaft •1 11/16" diameter cable drum shaft standard on handset #1 sawmills •2 3/16" diameter cable drum shaft standard on hydraulic #1 sawmills •Cable drum is 11" diameter with a 15" face and uses 1/2" cable •Mandrel is 2 7/16" diameter with 6" saw collars, lengths vary •Offbearing conveyor driven from the mandrel, available in either 14' length with 16" belt or 75" length with 16" belt, custom lengths are available •Saw guide with remote adjustment arms
