Magnetic plug TCEM

drain

Product description

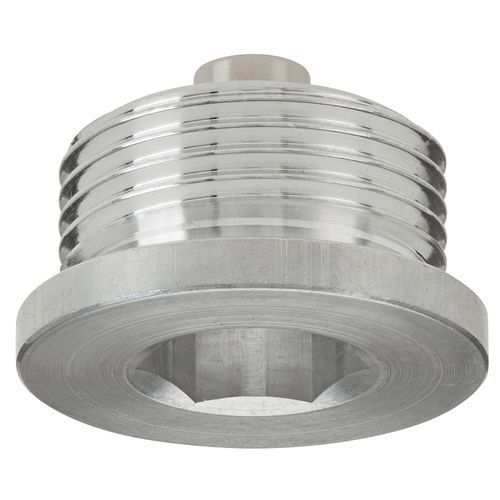

Magnetic oil drain plug designed to capture ferrous particles in circulating oil. Manufactured in aluminium alloy (no surface treatment by default). A permanent magnetic insert in a special alloy attracts and retains ferrous debris. Recommended for high-rpm machinery. Supplied exclusively with metal washers.

Type
STANDARD DIN 908

Finish
Available on request with anodizing treatment.

Magnet types

• A = Alnico (Max operating temperature +300 °C)
• N = Neodymium (Max operating temperature +80 °C)

Technical Info - GAS ISO 228
TYPE | CODE | THREAD | e | g | h | f | t | d | MAGNET | WEIGHT (g)
TCEM0G | 1GTEM00A | 1/8" | 5 | 3 | 4 | 8 | 3 | 14 | N | 4
TCEM1G | 1GTEM10A | 1/4" | 6 | 5 | 5 | 12 | 3 | 18 | N | 7
TCEM2G | 1GTEM20A | 3/8" | 8 | 5 | 5 | 12 | 3 | 22 | N | 10
TCEM3G | 1GTEM30A | 1/2" | 10 | 6 | 5 | 14 | 4 | 26 | N | 18
TCEM4G | 1GTEM40A | 3/4" | 12 | 10 | 6 | 16 | 4 | 32 | N | 32
TCEM5G | 1GTEM50A | 1" | 17 | 10 | 6 | 16 | 5 | 40 | N | 50
TCEM6G | 1GTEM60A | 1" 1/4 | 22 | 15 | 10 | 16 | 5 | 49 | A | 87
TCEM7G | 1GTEM70A | 1" 1/2 | 24 | 15 | 10 | 16 | 5 | 55 | A | 105
TCEM8G | 1GTEM80A | 2" | 32 | 15 | 15 | 20 | 5 | 68 | A | 184

Technical Info - MB METRIC
TYPE | CODE | THREAD | e | g | h | f | t | d | MAGNET | WEIGHT (g)
TCEM0M | 1MTEM00A | 10 x 1 | 5 | 3 | 4 | 8 | 3 | 14 | N | 4
TCEM1M | 1MTEM10A | 12 x 1.5 | 6 | 5 | 4 | 12 | 3 | 17 | N | 6
TCEM2M | 1MTEM20A | 14 x 1.5 | 6 | 5 | 5 | 12 | 3 | 19 | N | 7
TCEM3M | 1MTEM30A | 16 x 1.5 | 8 | 5 | 5 | 12 | 3 | 21 | N | 9
TCEM4M | 1MTEM40A | 18 x 1.5 | 8 | 6 | 5 | 12 | 3 | 23 | N | 12
TCEM5M | 1MTEM50A | 20 x 1.5 | 10 | 6 | 5 | 14 | 4 | 25 | N | 16
TCEM6M | 1MTEM60A | 22 x 1.5 | 10 | 6 | 5 | 14 | 4 | 27 | N | 20
TCEM7M | 1MTEM70A | 24 x 1.5 | 12 | 6 | 5 | 14 | 4 | 29 | N | 22
TCEM8M | 1MTEM81A | 24 x 2 | 12 | 8 | 6 | 14 | 4 | 29 | A | 22
TCEM9M | 1MTEM90A | 26 x 1.5 | 12 | 10 | 6 | 16 | 4 | 32 | N | 31
TCEM10M | 1MTEM91A | 27 x 2 | 12 | 10 | 6 | 16 | 4 | 32 | N |
TCEM11M | 1MTEM92A | 30 x 1.5 | 17 | 10 | 6 | 16 | 4 | 36 | N | 35
TCEM12M | 1MTEM93A | 30 x 2 | 17 | 10 | 6 | 16 | 4 | 36 | N | 35
TCEM13M | 1MTEM94A | 33 x 2 | 17 | 10 | 6 | 16 | 5 | 40 | N | 49

Technical specifications / characteristics

• Model: TCEM
• Material: Aluminium alloy (no surface treatment by default)
• Standard: DIN 908
• Supply: Supplied exclusively with metal washers
• Available finishes: Anodizing on request
• Magnet options: Alnico (A) up to +300 °C; Neodymium (N) up to +80 °C
• Applications: Recommended for high-rpm machinery; captures ferrous particles in oil
• Available thread variants: GAS ISO 228 and MB metric versions as detailed above
