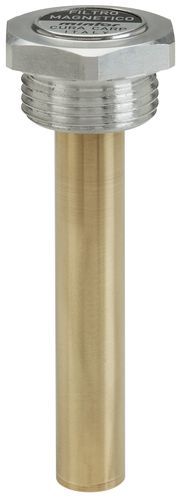

Magnetic plug FMC

filling

Product description
Magnetic candle filter (FMC series) for capture of ferrous contaminants in machining fluids and storage tanks. Aluminium-alloy head supplied untreated by default. Permanent magnetic sections in a special alloy provide a wide-radius magnetic action. Non-magnetic smooth coating facilitates cleaning and inspection. Recommended applications: grinding machines, hydraulic units and large tanks.

Availability
Available on request in different lengths and with anodizing treatment. Supplied in GAS ISO 228 and MB metric threaded versions — see technical tables for models, codes and dimensions.

Type of magnet used
F = Ferrite (Max operating temperature +250 °C)
N = Neodymium (Max operating temperature +80 °C)

Technical Info - GAS ISO 228
TYPE | CODE | THREAD | t | f | l | h | g | e | MAGNET | WEIGHT (g)
FMC1G | 1GFMC10A | 3/8" | 8 | 10 | 80 | 70 | 9 | 22 | N | 42
FMC2G | 1GFMC20A | 1/2" | 8.5 | 10 | 95 | 85 | 12 | 27 | F | 80
FMC3G | 1GFMC30A | 3/4" | 9.5 | 12 | 102 | 90 | 17 | 32 | F | 153
FMC4G | 1GFMC40A | 1" | 9.5 | 14 | 104 | 90 | 17 | 40 | F | 173
FMC5G | 1GFMC50A | 1" 1/4 | 10 | 15 | 105 | 90 | 28 | 50 | F | 430
FMC6G | 1GFMC60A | 1" 1/2 | 10 | 15 | 105 | 90 | 28 | 55 | F | 461
FMC7G | 1GFMC70A | 2" | 12 | 17 | 107 | 90 | 28 | 70 | F | 587

Technical Info - MB METRIC
TYPE | CODE | THREAD | t | f | l | h | g | e | MAGNET | WEIGHT (g)
FMC1M | 1MFMC10A | 16 x 1.5 | 8 | 10 | 80 | 70 | 9 | 22 | N |
FMC2M | 1MFMC20A | 18 x 1.5 | 8 | 10 | 80 | 70 | 9 | 22 | N |
FMC3M | 1MFMC30A | 20 x 1.5 | 7 | 10 | 95 | 85 | 12 | 24 | F | 69
FMC4M | 1MFMC40A | 22 x 1.5 | 8.5 | 10 | 95 | 85 | 12 | 27 | F | 73

Characteristics / technical specifications

• Product form: candle-type magnetic filter (FMC series)
• Head material: aluminium alloy (no surface treatment by default)
• Magnetic element: permanent magnetic sections in a special alloy with wide-radius action
• Coating: non-magnetic smooth finish for easier cleaning
• Recommended applications: grinding machines, hydraulic control units, large tanks
• Options: available on request in different lengths and with anodizing treatment
• Magnet types: F (Ferrite) — max +250 °C; N (Neodymium) — max +80 °C
• Available models and dimensional data: see Technical Info tables (GAS ISO 228 and MB metric)
