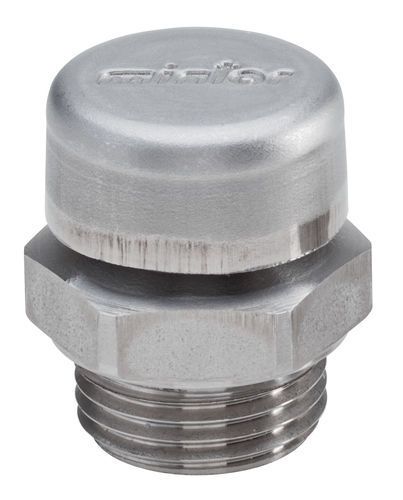

Breather plug TSL INOX

filling

Product overview
Filling plug with free vent. Stainless Steel 316 plug protected by a stainless steel cover; no internal valve. Supplied without external seal.

Available versions

• 1/4"
• 3/8"
• 1/2"

Installation and usage note
The product is not designed to operate in an inverted position. Installation or testing in this configuration does not comply with the design specifications and may compromise the device's proper operation.

Technical Info - GAS ISO 228
THREAD | d | h | f | e | s
1/4" | 16.5 | 19 | 8 | 17 | 19
3/8" | 16.5 | 19 | 8 | 20 | 22
1/2" | 21 | 22 | 10 | 24 | 26.8

Characteristics / technical specifications

• Model: TSL INOX
• Material: Stainless Steel 316
• Cover: Stainless steel protective cover (no internal valve)
• Seal: Supplied without external seal
• Available thread sizes: 1/4"; 3/8"; 1/2"
• Standard: GAS ISO 228
• Installation note: Not to be used inverted; testing or installation inverted may compromise operation
