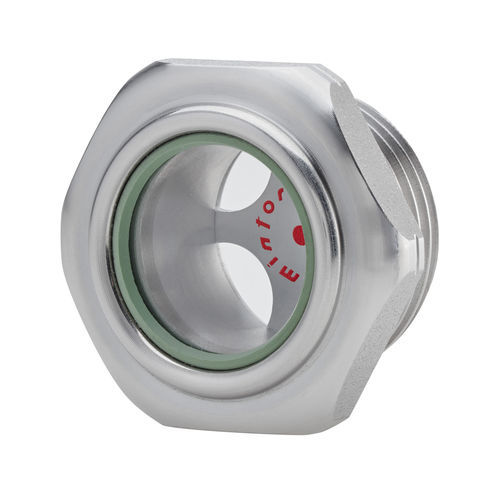

Visual level sensor TLAX INOX

Description

• Visual level indicator with glass
• Made of Stainless Steel 316, with transparent inspection window in Pyrex glass suitable for temperatures from -20°C to +200°C (max)
• Recommended pressure: 3 bar

Technical Info - GAS ISO 228
* Item TLAX1G - TLAX 1/4" is supplied without contrast star

Table (THREAD / f / t / v / e)
THREAD | f | t | v | e
1/4" * | 8 | 9 | 10 | 17
3/8" | 10.5 | 10 | 13 | 22
1/2" | 11 | 9 | 16 | 27
3/4" | 12 | 9 | 21 | 32
1" | 15.5 | 10 | 27 | 40

Characteristics / technical specifications

• Model: TLAX INOX
• Brand: Mintor Srl
• Material: Stainless Steel 316
• Inspection window: Pyrex glass
• Temperature range: -20°C to +200°C (max)
• Recommended pressure: 3 bar
• Standard: GAS ISO 228
• Note: Item TLAX1G - TLAX 1/4" is supplied without contrast star
• Available threads and dimensions (see table above): 1/4" (f 8 / t 9 / v 10 / e 17); 3/8" (f 10.5 / t 10 / v 13 / e 22); 1/2" (f 11 / t 9 / v 16 / e 27); 3/4" (f 12 / t 9 / v 21 / e 32); 1" (f 15.5 / t 10 / v 27 / e 40)
