Air purge valve TSSRC

airpneumaticbrass

Product

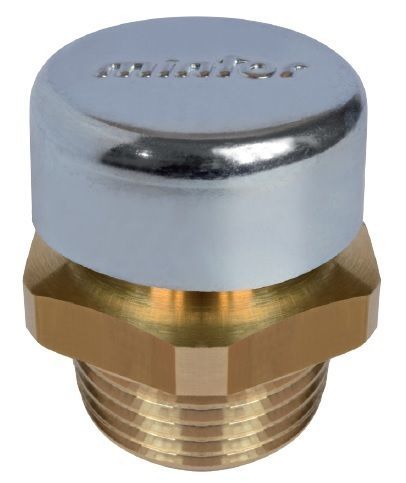

Conical breather plug with valve designed to vent intermittent internal pressures caused by fluid turbulence

Description
Brass conical breather plug with an internal valve calibrated 0.15–0.30 bar. The valve opens intermittently to release internal pressure peaks generated by fluid turbulence and prevents ingress of foreign bodies. Operating temperature range: -20°C to +100°C. Options on request: nickel plating, alternative valve calibrations, or construction in aluminum alloy.

Important
The product is not designed to operate in an inverted position. Installation or testing in an inverted configuration does not comply with design specifications and may impair correct operation.

Technical Info - BSPT (table)
CODE | THREAD | d | h | f | e | s | WEIGHT (g)
1GTSRC00O | 1/8" | 13.5 | 18 | 8 | 14 | 15.6 | 19
1GTSRC10O | 1/4" | 16.5 | 18 | 8 | 17 | 19 | 28
1GTSRC20O | 3/8" | 16.5 | 19 | 8 | 19 | 21.8 | 34
1GTSRC30O | 1/2" | 21 | 18.5 | 10 | 22 | 24.5 | 57

Technical Info - MB METRIC (table)
CODE | THREAD | d | h | f | e | s | WEIGHT (g)
1MTSRC00O | 10 x 1 | 13.5 | 18 | 8 | 14 | 15.6 | 22
1MTSRC10O | 14 x 1,5 | 16.5 | 18 | 8 | 17 | 19 | 29
1MTSRC20O | 16 x 1,5 | 21 | 19 | 8 | 22 | 24.5 | 45
1MTSRC30O | 18 x 1,5 | 21 | 19 | 8 | 22 | 24.5 | 48
1MTSRC50O | 22 x 1,5 | 21 | 21.5 | 10 | 24 | 26.8 | 82

Characteristics / technical specifications

• Model: TSSRC
• Brand: Mintor Srl
• Material: brass (standard). Options: nickel-plated finish or aluminum alloy on request
• Internal valve calibration: 0.15–0.30 bar
• Function: intermittent opening to vent internal pressure peaks caused by fluid turbulence; prevents ingress of foreign bodies
• Operating temperature range: -20°C to +100°C
• Mounting orientation: not designed to operate in inverted position
• Available thread variants (BSPT): 1/8", 1/4", 3/8", 1/2"
• Available thread variants (Metric): 10 x 1, 14 x 1.5, 16 x 1.5, 18 x 1.5, 22 x 1.5
• Technical codes, dimensions and weights are provided in the tables above
